| General Info | |
|---|---|

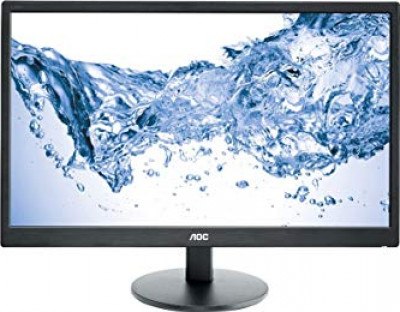

| Model Number | AOC M2470SWDA |
|
|
| Price | |
| Type | Monitor |
| Year | 2015 |
| Brand | AOC |
| Model Number | M2470SWDA |
| Display | |
| Screen Size Class | 24" (inches) |
| Diagonal Size | 23.58 in 59.9 cm 599 mm 1.97 ft |
| Screen Width | 20.52 in 52.1 cm 521.28 mm 1.71 ft |
| Screen Height | 11.54 in 29.3 cm 293.22 mm 0.96 ft |
| Display Manufacturer | Innolux |
| Display Type | Super MVA |
| Display Bit Depth | 8 bits |
| Frame Rate Control | No |
| Max Number of Colors | 16777216 |
| Bits | 24 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| Screen Pixel Pitch | 0.272 mm |
| Screen Pixel Density | 93 ppi |
| Screen-to-Body Ratio | 81.92 % |
| Backlight Source | W-LED |
| NTSC 1953 | 72 % |
| Screen Brightness | 250 cd/m² |
| Static Screen Contrast | 3000 : 1 |
| Dynamic Screen Contrast | 30000000 : 1 |
| Screen Horizontal Viewing Angle | 178 ° |
| Screen Vertical Viewing Angle | 178 ° |
| Display Minimum Response Time | 5 ms |
| Display Coating | Anti-glare/Matte (3H) |
| 3D | No |
| Size, weight, color | |
| Case Depth | 2.1 in 5.3 cm 53.4 mm 0.18 ft |
| Case Weight | 3.4 kg 7 lbs |
| Case Width with Stand | 21.71 in 55.1 cm 551.4 mm 1.81 ft |
| Case Height with Stand | 15.76 in 40 cm 400.4 mm 1.31 ft |
| Case Depth with Stand | 8.7 in 22.1 cm 221 mm 0.73 ft |
| Case Weight with Stand | 4.9 kg 11 lbs |
| Case Color | Black |
| Hardware | |
| Built-in Camera | No |
| Connectivity | 1 x 3.5 mm Audio Out 1 x DVI-D Dual Link 1 x D-sub |
| Audio | |
| Audio Speakers | 2 x 2W |
| Features | |
| Cool Features | HDCP (High-bandwidth Digital Content Protection) |
| Extra Features | Security lock slot |
| Ergonomics | |
| Case Width | 21.71 in 55.1 cm 551.4 mm 1.81 ft |
| Case Height | 13.32 in 33.8 cm 338.4 mm 1.11 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 100 x 100 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | Yes |
| Forward Tilt | 5 ° |
| Backward Tilt | 25 ° |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 50 Hz - 76 Hz |
| Horizontal Digital Frequency | 30 kHz - 83 kHz |
| Accessories | |
| Extras | Audio cable D-sub cable |
| Certificates and Standards | |
| Licenses | CE EAC ENERGY STAR 6.0 TCO 6 |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 85 % |
| Internal Storage Temperature | -25 °C - 55 °C -13 °F - 131 °F |
| Internal Storage Humidity | 5 % - 93 % |
| Max Operating Altitude | 5000 |
| Max Storage Altitude | 12192 |
| AOC M2470SWDA |
