| General Info | ||
|---|---|---|

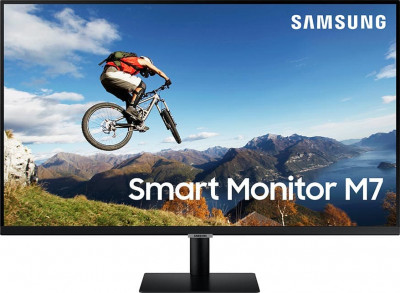

| Model Number | AOC U2477PWQ | Samsung 32M70A |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2015 | 2020 |
| Brand | AOC | Samsung |
| Model Number | U2477PWQ | 32M70A |
| Alias | LS32AM70 32AM70 |
|
| Display | ||
| Screen Size Class | 24" (inches) | 32" (inches) |
| Diagonal Size | 23.58 in 59.9 cm 599 mm 1.97 ft |
31.5 in 80 cm 800.1 mm 2.63 ft |
| Screen Width | 20.52 in 52.1 cm 521.28 mm 1.71 ft |
27.45 in 69.7 cm 697.31 mm 2.29 ft |
| Screen Height | 11.54 in 29.3 cm 293.22 mm 0.96 ft |
15.44 in 39.2 cm 392.233 mm 1.29 ft |
| Display Manufacturer | Samsung | |
| Display Type | PLS | VA |
| Display Bit Depth | 8 bits | 8 bits |
| Frame Rate Control | No | No |
| Max Number of Colors | 16777216 | 16777216 |
| Bits | 24 | 24 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 3840 x 2160 | 3840 x 2160 |
| Screen Pixel Pitch | 0.136 mm | 0.182 mm |
| Screen Pixel Density | 187 ppi | 140 ppi |
| Screen-to-Body Ratio | 89.92 % | |
| Backlight Source | W-LED | W-LED |
| sRGB | 100 % | |
| NTSC 1953 | 72 % | |
| Screen Brightness | 300 cd/m² | 250 cd/m² |
| Static Screen Contrast | 1000 : 1 | 3000 : 1 |
| Dynamic Screen Contrast | 50000000 : 1 | |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Screen Input Lag | 5 ms | |
| Display Minimum Response Time | 4 ms | 8 ms |
| Display Maximum Response Time | 14 ms | |
| Display Coating | Anti-glare/Matte (3H) | Anti-glare/Matte |
| HDR | HDR10 | |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 1.65 in 4.2 cm 41.8 mm 0.14 ft |
|
| Case Weight | 5.4 kg 12 lbs |
|
| Case Width with Stand | 21.85 in 55.5 cm 555 mm 1.82 ft |
28.21 in 71.7 cm 716.5 mm 2.35 ft |
| Case Height with Stand | 15.08 in 38.3 cm 383 mm 1.26 ft |
20.35 in 51.7 cm 517 mm 1.7 ft |
| Case Depth with Stand | 5.47 in 13.9 cm 139 mm 0.46 ft |
7.62 in 19.4 cm 193.5 mm 0.63 ft |
| Case Weight with Stand | 6 kg 13 lbs |
6.5 kg 14 lbs |
| Case Color | Black | Black |
| Hardware | ||
| Built-in Camera | No | |
| Network | Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) DLNA Bluetooth 4.2 |
|
| Connectivity | 1 x DVI-D Dual Link 1 x D-sub 1 x HDMI 2.0 (MHL) 1 x DisplayPort 1.2 |
2 x HDMI 2.0 (CEC) 1 x USB (Type-C; upstream; 65W; DP Alt Mode) 3 x USB 2.0 (Type-A; downstream) |
| Audio | ||
| Audio Speakers | 2 x 5W | |
| Features | ||
| OS | Tizen 5.5 | |
| Cool Features | Flicker-free technology HDCP (High-bandwidth Digital Content Protection) |
Bixby YouTube Wireless DeX (only compatible with Note 20 series) ConnectShare Remote Access Flicker-free technology Google Assistant Ultrawide Game View SmartThings Game Mode Eye Saver Mode Adaptive Picture Tap View Microsoft Office 365 Auto Source Switch+ Netflix |
| Ergonomics | ||
| Case Width | 28.21 in 71.7 cm 716.5 mm 2.35 ft |
|
| Case Height | 16.71 in 42.5 cm 424.5 mm 1.39 ft |
|
| Vesa Mount Support | No | Yes |
| VESA Interface Standard Size | 100 x 100 | 100 x 100 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | Yes | No |
| Height Adjustment Range | 130 mm 13 cm 5.1181 in 0.4265 ft |
|
| Landscape or Portrait Pivot Support | Yes | No |
| Left Pivot | 0 ° | |
| Right Pivot | 90 ° | |
| Left or Right Swivel Support | No | No |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 5 ° | 2 ° |
| Backward Tilt | 23 ° | 22 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 23 Hz - 80 Hz | 60 Hz |
| Horizontal Digital Frequency | 30 kHz - 160 kHz | |
| Screen Interpolation Measurement Unit | NULL | |
| Accessories | ||
| Extras | D-sub cable DisplayPort cable HDMI cable |
HDMI cable Remote control USB Type-C cable |
| Certificates and Standards | ||
| Licenses | CE EAC ENERGY STAR 6.0 TCO Certified Displays 6.0 |
|
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
10 °C - 40 °C 50 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 85 % | |
| Internal Storage Temperature | -25 °C - 55 °C -13 °F - 131 °F |
|
| Internal Storage Humidity | 5 % - 93 % | 10 % - 80 % |
| Max Operating Altitude | 3657.6 | |
| Max Storage Altitude | 12192 |
| AOC U2477PWQ | Samsung 32M70A |
