| General Info | ||
|---|---|---|

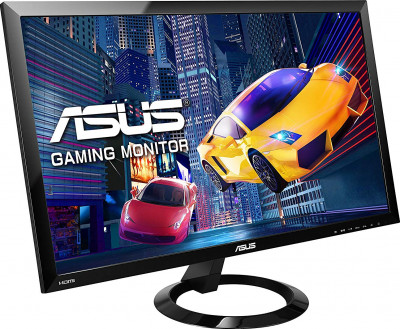

| Model Number | Asus VX248H | AOC 22B1HS |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2014 | 2018 |
| Brand | Asus | AOC |
| Model Number | VX248H | 22B1HS |
| Display | ||
| Screen Size Class | 24" (inches) | 22" (inches) |
| Diagonal Size | 24 in 61 cm 609.7 mm 2 ft |
21.5 in 54.6 cm 546.1 mm 1.79 ft |
| Screen Width | 20.92 in 53.1 cm 531.36 mm 1.74 ft |
18.77 in 47.7 cm 476.64 mm 1.56 ft |
| Screen Height | 11.77 in 29.9 cm 298.89 mm 0.98 ft |
10.56 in 26.8 cm 268.11 mm 0.88 ft |
| Display Manufacturer | AU Optronics | |
| Display Type | TN | IPS |
| Display Bit Depth | 8 bits (6 bits + FRC) | 8 bits (6 bits + FRC) |
| Frame Rate Control | Yes | Yes |
| Max Number of Colors | 16777216 | 16777216 |
| Bits | 24 | 24 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 1920 x 1080 | 1920 x 1080 |
| Screen Pixel Pitch | 0.277 mm | 0.248 mm |
| Screen Pixel Density | 91 ppi | 102 ppi |
| Screen-to-Body Ratio | 84.11 % | |
| Backlight Source | W-LED | W-LED |
| NTSC 1953 | 72 % | |
| Screen Brightness | 250 cd/m² | 250 cd/m² |
| Static Screen Contrast | 1000 : 1 | 1000 : 1 |
| Dynamic Screen Contrast | 50000000 : 1 | 50000000 : 1 |
| Screen Horizontal Viewing Angle | 170 ° | 178 ° |
| Screen Vertical Viewing Angle | 160 ° | 178 ° |
| Display Minimum Response Time | 1 ms | 5 ms |
| Display Average Response Time | 3.5 ms | |
| Display Coating | Anti-glare/Matte | Anti-glare/Matte (3H) |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 1.31 in 3.3 cm 33.3 mm 0.11 ft |
|
| Case Weight | 2.13 kg 5 lbs |
|
| Case Width with Stand | 22.46 in 57 cm 570.4 mm 1.87 ft |
19.83 in 50.4 cm 503.6 mm 1.65 ft |
| Case Height with Stand | 16.1 in 40.9 cm 409 mm 1.34 ft |
15.79 in 40.1 cm 401 mm 1.32 ft |
| Case Depth with Stand | 8.27 in 21 cm 210.1 mm 0.69 ft |
6.8 in 17.3 cm 172.8 mm 0.57 ft |
| Case Weight with Stand | 3.2 kg 7 lbs |
2.6 kg 6 lbs |
| Case Color | Black | Black |
| Hardware | ||
| Built-in Camera | No | No |
| Connectivity | 1 x D-sub 1 x 3.5 mm Audio In 1 x 3.5 mm Audio Out 2 x HDMI 1.4 1 x DVI-D Dual Link |
1 x 3.5 mm Audio Out 1 x HDMI 1.4 1 x D-sub |
| Audio | ||
| Audio Speakers | 2 x 2W | |
| Features | ||
| Cool Features | SPLENDID Video Intelligence Technology Flicker-free technology HDCP (High-bandwidth Digital Content Protection) |
Low Blue Light Flicker-free technology HDCP (High-bandwidth Digital Content Protection) |
| Extra Features | Anti-theft stand lock slot - Kensington | Security lock slot |
| Ergonomics | ||
| Case Width | 19.83 in 50.4 cm 503.6 mm 1.65 ft |
|
| Case Height | 11.88 in 30.2 cm 301.7 mm 0.99 ft |
|
| Vesa Mount Support | Yes | No |
| VESA Interface Standard Size | 100 x 100 | 100 x 100 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | No |
| Landscape or Portrait Pivot Support | No | No |
| Left or Right Swivel Support | No | No |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 5 ° | 5 ° |
| Backward Tilt | 20 ° | 23 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 56 Hz - 76 Hz | 50 Hz - 76 Hz |
| Horizontal Digital Frequency | 30 kHz - 80 kHz | 30 kHz - 83 kHz |
| Accessories | ||
| Extras | Audio cable D-sub cable |
D-sub cable |
| Certificates and Standards | ||
| Licenses | BSMI CB CCC CE cTick CU ENERGY STAR 6.0 RoHS TCO Certified Displays 6.0 TÜV Flicker-free TÜV Low Blue Light UL/cUL VCCI WEEE WHQL (Windows 8; Windows 7) |
BSMI CE EAC ENERGY STAR FCC Class B |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 85 % | |
| Internal Storage Temperature | -20 °C - 60 °C -4 °F - 140 °F |
-25 °C - 55 °C -13 °F - 131 °F |
| Internal Storage Humidity | 5 % - 93 % | |
| Max Operating Altitude | 5000 | |
| Max Storage Altitude | 12192 |
| Asus VX248H | AOC 22B1HS |
