| General Info | ||
|---|---|---|

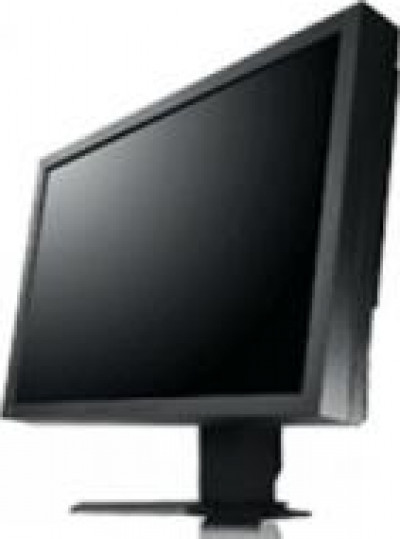

| Model Number | EIZO S2402W | Fujitsu B23T-7 LED |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2008 | 2014 |
| Brand | EIZO | Fujitsu |
| Model Series | FlexScan | |
| Model Number | S2402W | B23T-7 LED |
| Alias | S2402W-BK S2402W-GY |
|
| Display | ||
| Screen Size Class | 24" (inches) | 23" (inches) |
| Diagonal Size | 24.06 in 61.1 cm 611 mm 2 ft |
22.99 in 58.4 cm 584 mm 1.92 ft |
| Screen Width | 20.41 in 51.8 cm 518.4 mm 1.7 ft |
20.05 in 50.9 cm 509.184 mm 1.67 ft |
| Screen Height | 12.76 in 32.4 cm 324 mm 1.06 ft |
11.28 in 28.6 cm 286.416 mm 0.94 ft |
| Display Type | TN | IPS |
| Display Bit Depth | 8 bits (6 bits + FRC) | 8 bits (6 bits + FRC) |
| Frame Rate Control | Yes | Yes |
| Max Number of Colors | 16777216 | 16777216 |
| Bits | 24 | 24 |
| Screen Aspect Ratio | 16:10 | 16:9 |
| Screen Resolution | 1920 x 1200 | 1920 x 1080 |
| Screen Pixel Pitch | 0.27 mm | 0.265 mm |
| Screen Pixel Density | 94 ppi | 95 ppi |
| Screen-to-Body Ratio | 80.86 % | 80.11 % |
| Backlight Source | CCFL | W-LED |
| NTSC 1953 | 72 % | |
| Screen Brightness | 300 cd/m² | 300 cd/m² |
| Static Screen Contrast | 1000 : 1 | 1000 : 1 |
| Dynamic Screen Contrast | 20000000 : 1 | |
| Screen Horizontal Viewing Angle | 170 ° | 178 ° |
| Screen Vertical Viewing Angle | 160 ° | 178 ° |
| Display Minimum Response Time | 5 ms | 5 ms |
| Display Coating | Anti-glare/Matte (3H) | Anti-glare/Matte (3H) |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 3.35 in 8.5 cm 85 mm 0.28 ft |
2.4 in 6.1 cm 61 mm 0.2 ft |
| Case Weight | 7.2 kg 16 lbs |
3.6 kg 8 lbs |
| Case Width with Stand | 22.28 in 56.6 cm 566 mm 1.86 ft |
21.65 in 55 cm 550 mm 1.8 ft |
| Case Height with Stand | 17.95 in 45.6 cm 456 mm 1.5 ft |
13.78 in 35 cm 350 mm 1.15 ft |
| Case Depth with Stand | 8.21 in 20.9 cm 208.5 mm 0.68 ft |
8.03 in 20.4 cm 204 mm 0.67 ft |
| Case Weight with Stand | 10.2 kg 22 lbs |
6.2 kg 14 lbs |
| Case Color | Black, White | White |
| Hardware | ||
| Built-in Camera | No | No |
| Connectivity | 1 x 3.5 mm Audio Out 1 x DVI-D Single link 1 x D-sub |
1 x DisplayPort 1 x DVI-D Dual Link 1 x 3.5 mm Audio In 1 x 3.5 mm Audio Out 1 x D-sub 2 x USB 2.0 (downstream) 1 x USB 2.0 (upstream) |
| Audio | ||
| Audio Speakers | 2 x 0.5W | 2 x 1.5W |
| Features | ||
| Cool Features | HDCP (High-bandwidth Digital Content Protection) | DDC/CI HDCP (High-bandwidth Digital Content Protection) |
| Extra Features | Anti-theft stand lock slot - Kensington | |
| Ergonomics | ||
| Case Width | 22.28 in 56.6 cm 566 mm 1.86 ft |
21.65 in 55 cm 550 mm 1.8 ft |
| Case Height | 14.45 in 36.7 cm 367 mm 1.2 ft |
13.03 in 33.1 cm 331 mm 1.09 ft |
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 100 x 100 | 100 x 100 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | Yes | Yes |
| Height Adjustment Range | 82 mm 8.2 cm 3.2283 in 0.269 ft |
130 mm 13 cm 5.1181 in 0.4265 ft |
| Landscape or Portrait Pivot Support | Yes | Yes |
| Left Pivot | 0 ° | 90 ° |
| Right Pivot | 90 ° | 90 ° |
| Left or Right Swivel Support | Yes | Yes |
| Left Swivel | 35 ° | 170 ° |
| Right Swivel | 35 ° | 170 ° |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 3 ° | 5 ° |
| Backward Tilt | 40 ° | 35 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 59 Hz - 61 Hz | 48 Hz - 76 Hz |
| Horizontal Digital Frequency | 31 kHz - 76 kHz | 30 kHz - 82 kHz |
| Accessories | ||
| Extras | Audio cable D-sub cable DVI-D cable |
Audio cable D-sub cable DVI-D cable USB 2.0 upstream cable |
| Certificates and Standards | ||
| Licenses | CB CCC CE cTÜVus EAC ENERGY STAR Epeat Silver FCC Class B ICES-003-B RCM RoHS TÜV/Ergonomics TÜV/GS VCCI-B WEEE |
C-Tick CCC CECP CEL cUL ENERGY STAR 6.0 Epeat Gold ErP FCC Class B KC RoHS Compliant TCO Certified Displays 6.0 TÜV/Ergonomics TÜV/GS VCCI |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 30 % - 80 % | 10 % - 85 % |
| Internal Storage Temperature | -20 °C - 60 °C -4 °F - 140 °F |
|
| Internal Storage Humidity | 30 % - 80 % |
| EIZO S2402W | Fujitsu B23T-7 LED |
