| General Info | ||
|---|---|---|

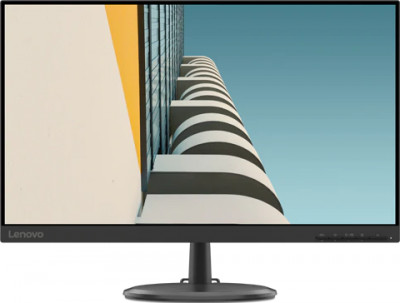

| Model Number | Lenovo D22-20 | Gigabyte M32U |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2020 | 2021 |
| Brand | Lenovo | Gigabyte |
| Model Number | D22-20 | M32U |
| Alias | 66ADKAC1 | |
| Display | ||
| Screen Size Class | 22" (inches) | 32" (inches) |
| Diagonal Size | 21.5 in 54.6 cm 546.1 mm 1.79 ft |
31.54 in 80.1 cm 801 mm 2.63 ft |
| Screen Width | 18.77 in 47.7 cm 476.64 mm 1.56 ft |
27.45 in 69.7 cm 697.306 mm 2.29 ft |
| Screen Height | 10.56 in 26.8 cm 268.11 mm 0.88 ft |
15.44 in 39.2 cm 392.234 mm 1.29 ft |
| Display Manufacturer | Innolux | |
| Display Type | TN | IPS |
| Display Bit Depth | 8 bits | 10 bits (8 bits + FRC) |
| Frame Rate Control | Yes | |
| Max Number of Colors | 16777216 | 1073741824 |
| Bits | 24 | 30 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 1920 x 1080 | 3840 x 2160 |
| Screen Pixel Pitch | 0.248 mm | 0.181 mm |
| Screen Pixel Density | 102 ppi | 140 ppi |
| Screen-to-Body Ratio | 81.09 % | 90.16 % |
| Backlight Source | W-LED | W-LED |
| DCI P3 | 90% | |
| sRGB | 123 % | |
| NTSC 1953 | 72 % | |
| Screen Brightness | 200 cd/m² | 350 cd/m² |
| Max Screen Brightness | 400 cd/m² | |
| Static Screen Contrast | 600 : 1 | 1000 : 1 |
| Dynamic Screen Contrast | 3000000 : 1 | |
| Screen Horizontal Viewing Angle | 170 ° | 178 ° |
| Screen Vertical Viewing Angle | 160 ° | 178 ° |
| Display Minimum Response Time | 5 ms | 2 ms |
| Display Coating | Anti-glare/Matte | Anti-glare/Matte |
| HDR | DisplayHDR 400 | |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 2.01 in 5.1 cm 51.1 mm 0.17 ft |
2.69 in 6.8 cm 68.2 mm 0.22 ft |
| Case Weight | 2.4 kg 5 lbs |
7.25 kg 16 lbs |
| Case Width with Stand | 19.97 in 50.7 cm 507.2 mm 1.66 ft |
28.18 in 71.6 cm 715.8 mm 2.35 ft |
| Case Height with Stand | 15.21 in 38.6 cm 386.4 mm 1.27 ft |
17.93 in 45.5 cm 455.3 mm 1.49 ft |
| Case Depth with Stand | 8.12 in 20.6 cm 206.2 mm 0.68 ft |
9.62 in 24.4 cm 244.3 mm 0.8 ft |
| Case Weight with Stand | 2.71 kg 6 lbs |
10.35 kg 23 lbs |
| Case Color | Black | Black |
| Hardware | ||
| Built-in Camera | No | No |
| Connectivity | 1 x 3.5 mm Audio Out 1 x HDMI 1.4 1 x D-sub |
1 x USB 3.0 (Type-C; upstream) 2 x HDMI 2.1 1 x 3.5 mm Audio Out 1 x DisplayPort 1.4 (DSC; HBR3) 3 x USB 3.0 (Type-A; downstream; BC 1.2 charging at 5V/1.5A) 1 x USB 3.0 (Type-B; upstream) |
| Audio | ||
| Audio Speakers | 2 x 3W | |
| Features | ||
| Cool Features | Low Blue Light DDC/CI Flicker-free technology |
Display Stream Compression (DSC) Flicker-free technology Smart OD KVM Switch OSD Sidekick Low Blue Light GameAssist (Aim Stabilizer / Crosshair / Dashboard / Black Equalizer / Timer / Counter / Auto-Update) 6-axis color control Picture-by-Picture Adaptive-Sync technology Picture-in-Picture |
| Extra Features | Anti-theft stand lock slot - Kensington | Anti-theft stand lock slot - Kensington |
| Ergonomics | ||
| Case Width | 19.97 in 50.7 cm 507.2 mm 1.66 ft |
28.18 in 71.6 cm 715.8 mm 2.35 ft |
| Case Height | 12.23 in 31.1 cm 310.7 mm 1.02 ft |
16.69 in 42.4 cm 423.8 mm 1.39 ft |
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 100 x 100 | 100 x 100 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | Yes |
| Height Adjustment Range | 130 mm 13 cm 5.1181 in 0.4265 ft |
|
| Landscape or Portrait Pivot Support | No | No |
| Left or Right Swivel Support | No | Yes |
| Left Swivel | 30 ° | |
| Right Swivel | 30 ° | |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 5 ° | 5 ° |
| Backward Tilt | 22 ° | 20 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 50 Hz - 75 Hz | 48 Hz - 144 Hz |
| Horizontal Digital Frequency | 30 kHz - 81 kHz | |
| Screen Interpolation Measurement Unit | NULL | NULL |
| Accessories | ||
| Extras | D-sub cable (EMEA only) HDMI cable (NA; LA; AP only) |
DisplayPort cable HDMI cable USB cable |
| Certificates and Standards | ||
| Licenses | CCC China Energy Efficiency Standard RoHS (EU 2002/95/EC) TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light Windows Certification (Windows 7 Windows 10) |
Eyesafe certified TÜV Rheinland Flicker-free certified TÜV Rheinland Low Blue Light certified |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 0 °C - 45 °C 32 °F - 113 °F |
0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 80 % | |
| Internal Storage Temperature | -20 °C - 60 °C -4 °F - 140 °F |
|
| Internal Storage Humidity | 5 % - 95 % | |
| Max Operating Altitude | 5000 | |
| Max Storage Altitude | 12192 |
| Lenovo D22-20 | Gigabyte M32U |
