| General Info | ||
|---|---|---|

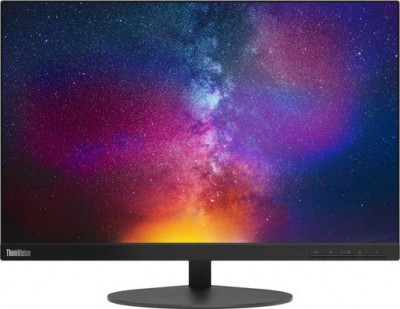

| Model Number | Lenovo ThinkVision T23d-10 | NEC MultiSync E245WMi |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2018 | 2016 |
| Brand | Lenovo | NEC |
| Model Number | ThinkVision T23d-10 | MultiSync E245WMi |
| Alias | 61C3MAR6US 61C3MAT6EU |
E245WMi-BK |
| Display | ||
| Screen Size Class | 23" (inches) | 24" (inches) |
| Diagonal Size | 22.5 in 57.2 cm 571.5 mm 1.88 ft |
24.07 in 61.1 cm 611.3 mm 2.01 ft |
| Screen Width | 19.05 in 48.4 cm 483.84 mm 1.59 ft |
20.41 in 51.8 cm 518.4 mm 1.7 ft |
| Screen Height | 11.91 in 30.2 cm 302.4 mm 0.99 ft |
12.76 in 32.4 cm 324 mm 1.06 ft |
| Display Manufacturer | Samsung | |
| Display Type | IPS | PLS |
| Display Bit Depth | 8 bits (6 bits + FRC) | 8 bits (6 bits + FRC) |
| Frame Rate Control | Yes | Yes |
| Max Number of Colors | 16777216 | 16777216 |
| Bits | 24 | 24 |
| Screen Aspect Ratio | 16:10 | 16:10 |
| Screen Resolution | 1920 x 1200 | 1920 x 1200 |
| Screen Pixel Pitch | 0.252 mm | 0.27 mm |
| Screen Pixel Density | 100 ppi | 94 ppi |
| Screen-to-Body Ratio | 83.51 % | |
| Backlight Source | W-LED | W-LED |
| NTSC 1953 | 72 % | |
| Screen Brightness | 250 cd/m² | 250 cd/m² |
| Static Screen Contrast | 1000 : 1 | 1000 : 1 |
| Dynamic Screen Contrast | 3000000 : 1 | 10000 : 1 |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Display Minimum Response Time | 6 ms | 6 ms |
| Display Average Response Time | 15 ms | |
| Display Coating | Anti-glare/Matte | |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 2.31 in 5.9 cm 58.6 mm 0.19 ft |
|
| Case Weight | 4.4 kg 10 lbs |
|
| Case Width with Stand | 19.73 in 50.1 cm 501.2 mm 1.64 ft |
21.9 in 55.6 cm 556.2 mm 1.82 ft |
| Case Height with Stand | 19.37 in 49.2 cm 491.9 mm 1.61 ft |
15.52 in 39.4 cm 394.2 mm 1.29 ft |
| Case Depth with Stand | 9.92 in 25.2 cm 251.9 mm 0.83 ft |
8.42 in 21.4 cm 213.9 mm 0.7 ft |
| Case Weight with Stand | 4.85 kg 11 lbs |
5.9 kg 13 lbs |
| Case Color | Black | Black |
| Hardware | ||
| Built-in Camera | No | No |
| Connectivity | 1 x D-sub 1 x 3.5 mm Audio Out 1 x HDMI 1.4 1 x DisplayPort 1.2 |
1 x D-sub 1 x 3.5 mm Audio In 1 x DisplayPort 1.2 (in/out) 1 x DVI-D Dual Link |
| Audio | ||
| Audio Speakers | 2 x 1W | |
| Features | ||
| Cool Features | DDC/CI HDCP (High-bandwidth Digital Content Protection) |
HDCP (High-bandwidth Digital Content Protection) Light sensor VESA DDC2B XtraView NaViSet software Carbon Footprint Meter EcoModes |
| Extra Features | Anti-theft stand lock slot - Kensington | |
| Ergonomics | ||
| Case Width | 21.9 in 55.6 cm 556.2 mm 1.82 ft |
|
| Case Height | 14.24 in 36.2 cm 361.6 mm 1.19 ft |
|
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 100 x 100 | 100 x 100 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | Yes | Yes |
| Height Adjustment Range | 110 mm 11 cm 4.3307 in 0.3609 ft |
110 mm 11 cm 4.3307 in 0.3609 ft |
| Landscape or Portrait Pivot Support | Yes | Yes |
| Left Pivot | 90 ° | 0 ° |
| Right Pivot | 90 ° | 90 ° |
| Left or Right Swivel Support | Yes | Yes |
| Left Swivel | 45 ° | 45 ° |
| Right Swivel | 45 ° | 45 ° |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 5 ° | 5 ° |
| Backward Tilt | 30 ° | 20 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 50 Hz - 75 Hz | 56 Hz - 60 Hz |
| Horizontal Digital Frequency | 30 kHz - 81 kHz | 31.5 kHz - 77 kHz |
| Accessories | ||
| Extras | D-sub cable DisplayPort cable |
Audio cable D-sub cable DysplayPort cable DVI-D cable |
| Certificates and Standards | ||
| Licenses | BSMI C-Tick CCC CE CECP ENERGY STAR 7.0 FCC Class B KC RoHS TCO Certified Display 7.0 TCO Edge 2.0 TÜV/GS VCCI WHQL (Windows 10; Windows 8.1; Windows 8; Windows 7) |
CE ENERGY STAR 6.0 ErP FCC Class B ISO 9241-307 Class I MPR II / MPR III PSB RoHS TCO Certified Displays 6.0 TCO Edge 2 TÜV/Ergonomics TÜV/GS WEEE |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 0 °C - 45 °C 32 °F - 113 °F |
5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 10 % - 80 % | 20 % - 80 % |
| Internal Storage Temperature | -20 °C - 60 °C -4 °F - 140 °F |
-10 °C - 60 °C 14 °F - 140 °F |
| Internal Storage Humidity | 5 % - 95 % | 10 % - 85 % |
| Max Operating Altitude | 5000 | 2000 |
| Max Storage Altitude | 12192 | 12192 |
| Lenovo ThinkVision T23d-10 | NEC MultiSync E245WMi |
