| General Info | ||
|---|---|---|

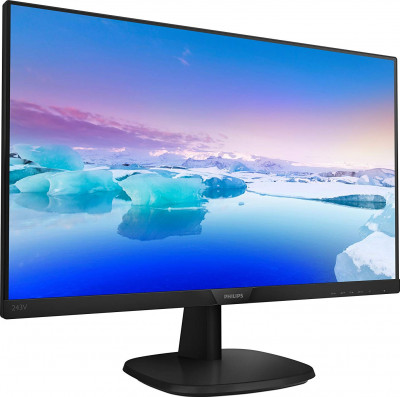

| Model Number | Philips 243V7QSB | AOC 24B1H |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2017 | 2018 |
| Brand | Philips | AOC |
| Model Number | 243V7QSB | 24B1H |
| Alias | 243V7QSB/69 | |
| Display | ||
| Screen Size Class | 24" (inches) | 24" (inches) |
| Diagonal Size | 23.78 in 60.4 cm 604 mm 1.98 ft |
23.58 in 59.9 cm 599 mm 1.97 ft |
| Screen Width | 20.75 in 52.7 cm 527.04 mm 1.73 ft |
20.53 in 52.1 cm 521.39 mm 1.71 ft |
| Screen Height | 11.67 in 29.6 cm 296.46 mm 0.97 ft |
11.55 in 29.3 cm 293.28 mm 0.96 ft |
| Display Type | IPS | MVA |
| Display Bit Depth | 8 bits (6 bits + FRC) | 8 bits (6 bits + FRC) |
| Frame Rate Control | Yes | Yes |
| Max Number of Colors | 16777216 | 16777216 |
| Bits | 24 | 24 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 1920 x 1080 | 1920 x 1080 |
| Screen Pixel Pitch | 0.275 mm | 0.272 mm |
| Screen Pixel Density | 92 ppi | 93 ppi |
| Screen-to-Body Ratio | 89.03 % | |
| Backlight Source | W-LED | W-LED |
| sRGB | 100 % | |
| NTSC 1953 | 68 % | 90 % |
| Screen Brightness | 250 cd/m² | 250 cd/m² |
| Static Screen Contrast | 1000 : 1 | 3000 : 1 |
| Dynamic Screen Contrast | 10000000 : 1 | 50000000 : 1 |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Display Minimum Response Time | 5 ms | 8 ms |
| Display Average Response Time | 14 ms | |
| Display Coating | Anti-glare/Matte (3H) | |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 1.77 in 4.5 cm 45 mm 0.15 ft |
|
| Case Weight | 3.1 kg 7 lbs |
|
| Case Width with Stand | 21.26 in 54 cm 540 mm 1.77 ft |
21.26 in 54 cm 540.1 mm 1.77 ft |
| Case Height with Stand | 16.34 in 41.5 cm 415 mm 1.36 ft |
16.43 in 41.7 cm 417.4 mm 1.37 ft |
| Case Depth with Stand | 8.23 in 20.9 cm 209 mm 0.69 ft |
7.35 in 18.7 cm 186.8 mm 0.61 ft |
| Case Weight with Stand | 3.5 kg 8 lbs |
2.6 kg 6 lbs |
| Case Color | Black | Black |
| Hardware | ||
| Built-in Camera | No | No |
| Connectivity | 1 x 3.5 mm Audio Out 1 x DVI-D Dual Link 1 x D-sub |
1 x 3.5 mm Audio Out 1 x HDMI 1.4 1 x D-sub |
| Audio | ||
| Features | ||
| Cool Features | HDCP (High-bandwidth Digital Content Protection) Low Blue Light SmartContrast SmartImage PowerSensor DDC/CI Flicker-free technology |
HDCP (High-bandwidth Digital Content Protection) |
| Extra Features | Anti-theft stand lock slot - Kensington | Security lock slot |
| Ergonomics | ||
| Case Width | 21.26 in 54 cm 540 mm 1.77 ft |
|
| Case Height | 12.8 in 32.5 cm 325 mm 1.07 ft |
|
| Vesa Mount Support | Yes | No |
| VESA Interface Standard Size | 100 x 100 | 75 x 75 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | No |
| Landscape or Portrait Pivot Support | No | No |
| Left or Right Swivel Support | No | No |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 5 ° | 3.5 ° |
| Backward Tilt | 20 ° | 21.5 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 56 Hz - 76 Hz | 50 Hz - 76 Hz |
| Horizontal Digital Frequency | 30 kHz - 83 kHz | 30 kHz - 83 kHz |
| Accessories | ||
| Extras | D-sub cable | HDMI cable |
| Certificates and Standards | ||
| Licenses | CCC CE Mark CECP cETLus EAC / CU ENERGY STAR 7.0 Epeat Gold FCC Class B RoHS SEMKO TCO Certified Displays 7.0 TCO Edge TÜV/Ergonomics TÜV/GS VCCI WEEE WHQL (Windows 10; Windows 8.1; Windows 8; Windows 7) |
BSMI CE EAC ENERGY STAR FCC Class B |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 20 % - 80 % | 10 % - 85 % |
| Internal Storage Temperature | -20 °C - 60 °C -4 °F - 140 °F |
-25 °C - 55 °C -13 °F - 131 °F |
| Internal Storage Humidity | 20 % - 80 % | 5 % - 93 % |
| Max Operating Altitude | 3658 | 5000 |
| Max Storage Altitude | 12192 | 12192 |
| Philips 243V7QSB | AOC 24B1H |
