| General Info | ||
|---|---|---|

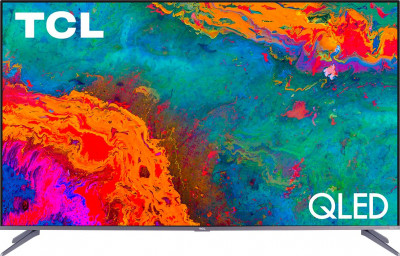

| Model Number | TCL 55C715 | TCL 75S535 |
|
|
|
| Price | ||
| Type | TV | TV |
| Year | 2020 | 2020 |
| Brand | TCL | TCL |
| Model Series | C71 | S535 |
| Model Number | 55C715 | 75S535 |
| Alias | 55C715X1 55C711 55AC710 |
|
| Display | ||
| Screen Size Class | 55" (inches) | 75" (inches) |
| Diagonal Size | 54.65 in 138.8 cm 1388 mm 4.55 ft |
74.53 in 189.3 cm 1893 mm 6.21 ft |
| Screen Width | 47.62 in 121 cm 1209.6 mm 3.97 ft |
64.97 in 165 cm 1650.24 mm 5.41 ft |
| Screen Height | 26.79 in 68 cm 680.4 mm 2.23 ft |
36.55 in 92.8 cm 928.26 mm 3.05 ft |
| Display Manufacturer | CSOT | |
| Display Type | HVA | VA |
| Display Bit Depth | 10 bits (8 bits + FRC) | 10 bits |
| Frame Rate Control | Yes | |
| Max Number of Colors | 1073741824 | 1073741824 |
| Bits | 30 | 30 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 3840 x 2160 | 3840 x 2160 |
| Screen Pixel Pitch | 0.315 mm | 0.43 mm |
| Screen Pixel Density | 80 ppi | 59 ppi |
| Screen-to-Body Ratio | 95.12 % | 96.12 % |
| Backlight Source | Direct LED | Direct LED (Full-Array Local Dimming) |
| DCI P3 | 93% | |
| Static Screen Contrast | 5000 : 1 | |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Screen Input Lag | 10 ms | |
| Display Minimum Response Time | 6.5 ms | |
| Display Coating | Glossy | |
| HDR | HDR10 HDR10+ Dolby Vision HLG (Hybrid Log Gamma) PQ10 |
HDR10 HLG (Hybrid Log Gamma) Dolby Vision |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 2.95 in 7.5 cm 75 mm 0.25 ft |
3.7 in 9.4 cm 94 mm 0.31 ft |
| Case Weight | 13.2 kg 29 lbs |
30.2 kg 66 lbs |
| Case Width with Stand | 48.39 in 122.9 cm 1229 mm 4.03 ft |
65.7 in 166.9 cm 1668.8 mm 5.48 ft |
| Case Height with Stand | 30.55 in 77.6 cm 776 mm 2.55 ft |
40.4 in 102.6 cm 1026.2 mm 3.37 ft |
| Case Depth with Stand | 11.81 in 30 cm 300 mm 0.98 ft |
16.2 in 41.2 cm 411.5 mm 1.35 ft |
| Case Weight with Stand | 14.4 kg 32 lbs |
31 kg 68 lbs |
| Case Color | Black, Titan | Black |
| Hardware | ||
| System on Chip or SoC | RealTek RTD2851 | |
| CPU | ARM Cortex-A55 | |
| CPU Cores | 4 | 2 |
| CPU Frequency | 1100 | |
| GPU | ARM Mali-470 MP | |
| GPU Cores | 3 | 2 |
| RAM Memory Size | 2 | |
| Internal Storage | 16 | |
| TV Tuner | Analog (NTSC/PAL/SECAM) DVB-T DVB-T2 DVB-C DVB-S DVB-S2 |
Analog (NTSC/PAL/SECAM) ATSC Clear QAM |
| Built-in Camera | No | No |
| Network | LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) Wi-Fi Direct DLNA Bluetooth 5.0 |
LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) Wi-Fi Direct |
| Connectivity | 3 x HDMI 2.0 (b) 1 x Satellite In (F-type) 1 x Optical Audio Out 1 x Antenna (RF) 1 x 3.5 mm Audio Out 1 x Video Component In 3.5 mm jack (CVBS) 2 x USB 2.0 (5V / 0.5A) 1 x CI+ 1.4 1 x Ethernet RJ45 |
4 x HDMI 2.0 1 x Satellite In (F-type female) 1 x S/PDIF 1 x 3.5 mm Audio Out 1 x AV Composite In 3.5 mm jack 1 x USB 2.0 1 x Ethernet RJ45 |
| Audio | ||
| Audio Speakers | 2 x 10W | 2 x 12W |
| Features | ||
| OS | Android 9.0 Pie | Roku TV |
| Cool Features | Disney+ Voice command UHD Upscaling Wide Color Gamut Dimming Pro Picture-in-Picture Game Mode IPQ 2.0 Engine UHD Premium Color Extender Quantum Dot Color HbbTV 2.0.2 Google Assistant Alexa TCL AI-IN Mega Dynamic Contrast Amazon Prime Video Noise Reduction |
Auto Game Mode Contrast Control Zone technology with 80 zones Smart HDR FullView edge-to-edge glass design Quantum Dot Color V-Chip Google Assistant Easy Voice Control AiPQ Engine Smart 4K Upscaling Alexa Smart Contrast |
| Ergonomics | ||
| Case Width | 48.39 in 122.9 cm 1229 mm 4.03 ft |
65.7 in 166.9 cm 1668.8 mm 5.48 ft |
| Case Height | 27.72 in 70.4 cm 704 mm 2.31 ft |
37.6 in 95.5 cm 955 mm 3.13 ft |
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 300 x 200 | 400 x 200 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | No |
| Landscape or Portrait Pivot Support | No | No |
| Left or Right Swivel Support | No | No |
| Forward and Backward Tilt Support | No | No |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
| Screen Interpolation Technology | Picture Performance Index | Natural Motion |
| Screen Interpolation Value | 2400 | 240 |
| Screen Interpolation Measurement Unit | PPI | NM |
| Accessories | ||
| Extras | Remote control - RC802N4 | Remote control - RC280 |
| Certificates and Standards | ||
| Licenses | RoHS | |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 20 % - 80 % | 20 % - 80 % |
| Internal Storage Temperature | -15 °C - 45 °C 5 °F - 113 °F |
-15 °C - 45 °C 5 °F - 113 °F |
| Internal Storage Humidity | 10 % - 90 % | 10 % - 90 % |
| TCL 55C715 | TCL 75S535 |
