| General Info | ||
|---|---|---|

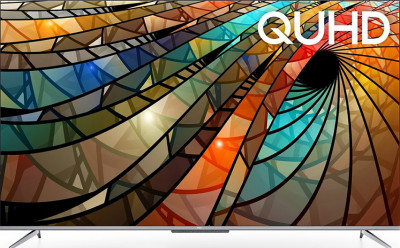

| Model Number | TCL 55P615 (AP) | TCL 55P715 |
|
|
|
| Price | ||
| Type | TV | TV |
| Year | 2020 | 2020 |
| Brand | TCL | TCL |
| Model Series | P615 / P61 | P715 / P71 |
| Model Number | 55P615 (AP) | 55P715 |
| Alias | 55P615-AP | 55P715-AP |
| Display | ||
| Screen Size Class | 55" (inches) | 55" (inches) |
| Diagonal Size | 54.65 in 138.8 cm 1388 mm 4.55 ft |
54.65 in 138.8 cm 1388 mm 4.55 ft |
| Screen Width | 47.62 in 121 cm 1209.6 mm 3.97 ft |
47.62 in 121 cm 1209.6 mm 3.97 ft |
| Screen Height | 26.79 in 68 cm 680.4 mm 2.23 ft |
26.79 in 68 cm 680.4 mm 2.23 ft |
| Display Manufacturer | CSOT | CSOT |
| Display Type | VA | VA |
| Display Bit Depth | 10 bits (8 bits + FRC) | 10 bits (8 bits + FRC) |
| Frame Rate Control | Yes | Yes |
| Max Number of Colors | 1073741824 | 1073741824 |
| Bits | 30 | 30 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 3840 x 2160 | 3840 x 2160 |
| Screen Pixel Pitch | 0.315 mm | 0.315 mm |
| Screen Pixel Density | 80 ppi | 80 ppi |
| Screen-to-Body Ratio | 93.55 % | |
| Backlight Source | Direct LED | Direct LED |
| Screen Brightness | 250 cd/m² | 270 cd/m² |
| Static Screen Contrast | 5000 : 1 | 4500 : 1 |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Display Minimum Response Time | 6.5 ms | 6.5 ms |
| Display Coating | Anti-glare/Matte (3H) | Anti-glare/Matte (3H) |
| HDR | HDR10 | HDR10 |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 3.07 in 7.8 cm 78 mm 0.26 ft |
|
| Case Weight | 11 kg 24 lbs |
11.5 kg 25 lbs |
| Case Width with Stand | 48.31 in 122.7 cm 1227 mm 4.03 ft |
|
| Case Height with Stand | 30.22 in 76.8 cm 767.7 mm 2.52 ft |
|
| Case Depth with Stand | 13.83 in 35.1 cm 351.4 mm 1.15 ft |
|
| Case Weight with Stand | 11.2 kg 25 lbs |
11.6 kg 26 lbs |
| Case Color | Black | Black |
| Hardware | ||
| System on Chip or SoC | RealTek RTD2851 | |
| CPU | 4x ARM Cortex-A55 | ARM Cortex-A55 |
| CPU Cores | 4 | 4 |
| CPU Frequency | 1100 | 1100 |
| GPU | ARM Mali-470 MP3 | ARM Mali-470 MP |
| GPU Cores | 3 | |
| GPU Frequency | 800 | |
| RAM Memory Size | 2 | 2 |
| Internal Storage | 16 | 16 |
| TV Tuner | Analog (NTSC/PAL/SECAM) DVB-T DVB-T2 |
Analog (NTSC/PAL/SECAM) DVB-T DVB-T2 DVB-C DVB-S DVB-S2 |
| Built-in Camera | No | No |
| Network | LAN Wi-Fi 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) Wi-Fi Direct DLNA Bluetooth 5.0 |
LAN Wi-Fi 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) Wi-Fi Direct DLNA Bluetooth 5.0 |
| Connectivity | 1 x HDMI 1.4 1 x HDMI 2.0 1 x AV Component In (YPbPr + L/R) 1 x 3.5 mm Audio Out 1 x S/PDIF 1 x Satellite In (F-type) 2 x USB 2.0 (5V / 0.5A) 1 x Antenna (RF) 1 x Ethernet RJ45 |
3 x HDMI 2.0 1 x Satellite In (F-type) 1 x S/PDIF 1 x Antenna (RF) 1 x 3.5 mm Audio Out 1 x AV Component In (YPbPr + L/R) 2 x USB 2.0 (5V / 0.5A) 1 x Ethernet RJ45 |
| Audio | ||
| Audio Speakers | 2 x 9.5W | 2 x 9.5W |
| Features | ||
| OS | Android 9.0 Pie | Android 9.0 Pie |
| Cool Features | Netflix Prime Video Rich Color Expansion YouTube TCL AI-IN PVR/Timeshift 4K Upscaling Micro Dimming (1296 zones) |
Chromecast built-in UHD Color Extender YouTube Dynamic Backlight Quantum Dot Color IPQ 2.0 Engine Micro Dimming Pro TCL AI-IN Rich Color Expansion Mega Dynamic Contrast Google Assitant 4K Upscaling Smart HDR Motion Clear Alexa Netflix |
| Ergonomics | ||
| Case Width | 48.31 in 122.7 cm 1227 mm 4.03 ft |
|
| Case Height | 28.23 in 71.7 cm 717 mm 2.35 ft |
|
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 200 x 300 | 200 x 200 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | No |
| Landscape or Portrait Pivot Support | No | No |
| Left or Right Swivel Support | No | No |
| Forward and Backward Tilt Support | No | No |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
| Screen Interpolation Technology | Clear Motion Rate | |
| Screen Interpolation Value | 100 | |
| Screen Interpolation Measurement Unit | NULL | CMR |
| Accessories | ||
| Extras | Remote control - RC901V | Remote control - RC802N |
| Certificates and Standards | ||
| Licenses | RoHS | RoHS |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 20 % - 80 % | 20 % - 80 % |
| Internal Storage Temperature | -15 °C - 45 °C 5 °F - 113 °F |
-15 °C - 45 °C 5 °F - 113 °F |
| Internal Storage Humidity | 10 % - 90 % | 10 % - 90 % |
| TCL 55P615 (AP) | TCL 55P715 |
