| General Info | ||
|---|---|---|

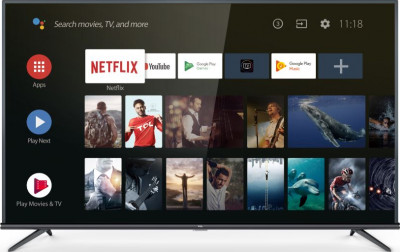

| Model Number | TCL 65EP660 | TCL 65R617 |
|
|
|
| Price | ||
| Type | TV | TV |
| Year | 2019 | 2018 |
| Brand | TCL | TCL |
| Model Series | EP66 | R6 |
| Model Number | 65EP660 | 65R617 |
| Alias | 65R615 | |
| Display | ||
| Screen Size Class | 65" (inches) | 65" (inches) |
| Diagonal Size | 64.53 in 163.9 cm 1639 mm 5.38 ft |
64.53 in 163.9 cm 1639 mm 5.38 ft |
| Screen Width | 56.24 in 142.8 cm 1428.48 mm 4.69 ft |
56.24 in 142.8 cm 1428.48 mm 4.69 ft |
| Screen Height | 31.63 in 80.4 cm 803.52 mm 2.64 ft |
31.63 in 80.4 cm 803.52 mm 2.64 ft |
| Display Type | VA | VA |
| Display Bit Depth | 10 bits (8 bits + FRC) | 10 bits (8 bits + FRC) |
| Frame Rate Control | Yes | Yes |
| Max Number of Colors | 1073741824 | 1073741824 |
| Bits | 30 | 30 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 3840 x 2160 | 3840 x 2160 |
| Screen Pixel Pitch | 0.372 mm | 0.372 mm |
| Screen Pixel Density | 68 ppi | 68 ppi |
| Screen-to-Body Ratio | 92.18 % | 94.7 % |
| Backlight Source | Direct LED | Direct LED (Full-Array Local Dimming) |
| Screen Brightness | 280 cd/m² | 450 cd/m² |
| Max Screen Brightness | 900 cd/m² | |
| Static Screen Contrast | 5000 : 1 | |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Screen Input Lag | 15 ms | |
| HDR | HDR10 HLG (Hybrid Log Gamma) |
HDR10 Dolby Vision |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 3.07 in 7.8 cm 78 mm 0.26 ft |
3 in 7.6 cm 76.2 mm 0.25 ft |
| Case Weight | 18 kg 40 lbs |
23.2 kg 51 lbs |
| Case Width with Stand | 57.68 in 146.5 cm 1465 mm 4.81 ft |
57.1 in 145 cm 1450.3 mm 4.76 ft |
| Case Height with Stand | 35.67 in 90.6 cm 906 mm 2.97 ft |
35.7 in 90.7 cm 906.8 mm 2.98 ft |
| Case Depth with Stand | 10.91 in 27.7 cm 277 mm 0.91 ft |
10.7 in 27.2 cm 271.8 mm 0.89 ft |
| Case Weight with Stand | 18.2 kg 40 lbs |
23.7 kg 52 lbs |
| Case Color | Black | Black |
| Hardware | ||
| CPU Cores | 4 | 2 |
| GPU Cores | 2 | |
| Internal Storage | 16 | |
| TV Tuner | Analog (NTSC/PAL/SECAM) DVB-T2 DVB-S2 DVB-C DVB-T DVB-S |
Analog (NTSC/PAL/SECAM) Clear QAM ATSC |
| Built-in Camera | No | No |
| Network | LAN Wi-Fi 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) Bluetooth Wi-Fi Direct DLNA |
LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) 2x2 MiMO |
| Connectivity | 3 x HDMI 2.0 (ARC; CEC; MHL) 1 x Satellite In (Main; F-type female) 1 x S/PDIF 1 x Antenna (RF) (female) 1 x 3.5 mm Audio Out 1 x AV Composite In (Video + L/R) 2 x USB 2.0 1 x CI+ 1 x Ethernet RJ45 |
3 x HDMI 2.0 (ARC; CEC) 1 x Satellite In (Main; F-type female) 1 x S/PDIF 1 x 3.5 mm Audio Out 1 x AV Composite In 3.5 mm jack 1 x USB 2.0 (max 0.5 A) 1 x Ethernet RJ45 |
| Audio | ||
| Audio Speakers | 2 x 8W | 2 x 8W |
| Features | ||
| OS | Android 9.0 Pie | Roku TV |
| Cool Features | IPQ Engine Mega Dynamic Contrast Picture-in-Picture UHD Upscaling UHD Color Extender Noise Reduction Dimming Pro Wide Color Gamut HDCP (High-bandwidth Digital Content Protection) 2.2 |
HDR Pro Gamma iPQ Engine Wide Color Gamut Contrast Control Zones HDCP (High-bandwidth Digital Content Protection) 2.2 |
| Ergonomics | ||
| Case Width | 57.68 in 146.5 cm 1465 mm 4.81 ft |
57.1 in 145 cm 1450.3 mm 4.76 ft |
| Case Height | 33.46 in 85 cm 850 mm 2.79 ft |
32.9 in 83.6 cm 835.7 mm 2.74 ft |
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 400 x 200 | 300 x 300 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | No |
| Landscape or Portrait Pivot Support | No | No |
| Left or Right Swivel Support | No | No |
| Forward and Backward Tilt Support | No | No |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 60 Hz | 60 Hz |
| Screen Interpolation Technology | Picture Performance Index | Clear Motion Index |
| Screen Interpolation Value | 1200 | 120 |
| Screen Interpolation Measurement Unit | PPI | CMI |
| Accessories | ||
| Extras | Remote control - RC802N6 | Remote control - RC280 (65R615) Remote control - RC580 (65R617) |
| Certificates and Standards | ||
| Licenses | RoHS | RoHS |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 20 % - 80 % | 20 % - 80 % |
| Internal Storage Temperature | -15 °C - 45 °C 5 °F - 113 °F |
-15 °C - 45 °C 5 °F - 113 °F |
| Internal Storage Humidity | 10 % - 90 % | 10 % - 90 % |
| TCL 65EP660 | TCL 65R617 |
