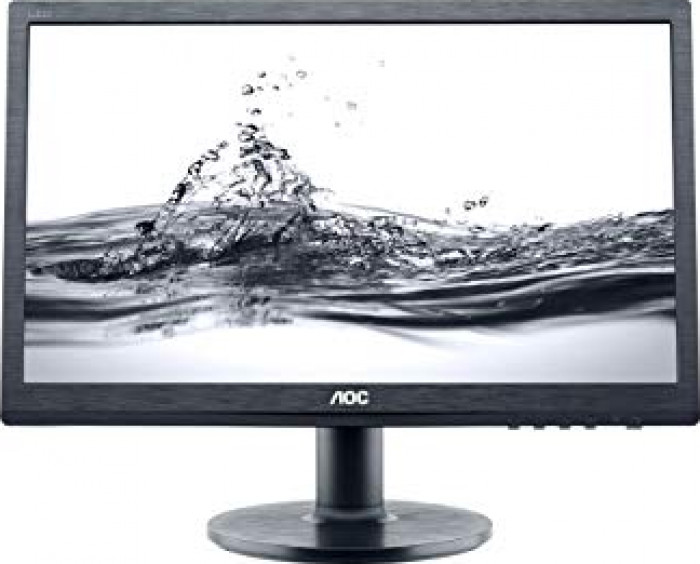

| Brand | AOC |
| Type | Monitor |
| Size | 20" (inches) |
| Panel | TN |
| Refresh Rate | 76 Hz |
| Min Response Time | 5 ms |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1600 x 900 |
| General Info | |
|---|---|
| Type | Monitor |
| Year | 2013 |
| Brand | AOC |
| Model Number | E2060SWDA |
| Size | 20" (inches) |
| Panel | TN |
| Display | |
| Screen Size Class | 20" (inches) |
| Diagonal Size | 19.45 in 49.4 cm 494 mm 1.62 ft |
| Screen Width | 17.01 in 43.2 cm 432 mm 1.42 ft |
| Screen Height | 9.44 in 24 cm 239.76 mm 0.79 ft |
| Display Manufacturer | Innolux |
| Display Type | TN |
| Display Bit Depth | 8 bits (6 bits + FRC) |
| Frame Rate Control | Yes |
| Max Number of Colors | 16777216 |
| Bits | 24 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1600 x 900 |
| Screen Pixel Pitch | 0.27 mm |
| Screen Pixel Density | 94 ppi |
| Backlight Source | W-LED |
| NTSC 1953 | 72 % |
| Screen Brightness | 250 cd/m² |
| Static Screen Contrast | 1000 : 1 |
| Dynamic Screen Contrast | 20000000 : 1 |
| Screen Horizontal Viewing Angle | 170 ° |
| Screen Vertical Viewing Angle | 160 ° |
| Display Minimum Response Time | 5 ms |
| Display Coating | Anti-glare/Matte (3H) |
| 3D | No |
| Size, weight, color | |
| Case Width with Stand | 18.8 in 47.8 cm 477.6 mm 1.57 ft |
| Case Height with Stand | 14.11 in 35.8 cm 358.3 mm 1.18 ft |
| Case Depth with Stand | 7.07 in 18 cm 179.5 mm 0.59 ft |
| Case Weight with Stand | 2.75 kg 6 lbs |
| Case Color | Black |
| Hardware | |
| Built-in Camera | No |
| Connectivity | 1 x 3.5 mm Audio Out 1 x DVI-D 1 x D-sub |
| Audio | |
| Audio Speakers | 2 x 2W |
| Features | |
| Cool Features | HDCP (High-bandwidth Digital Content Protection) |
| Extra Features | Anti-theft stand lock slot - Kensington |
| Ergonomics | |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 100 x 100 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | Yes |
| Forward Tilt | 5 ° |
| Backward Tilt | 22 ° |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 50 Hz - 76 Hz |
| Horizontal Digital Frequency | 30 kHz - 83 kHz |
| Power | |
| 110V | 100 V - 120 V |
| 220V | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Power Consumption When Device is Off | 0.5 W |
| Power Consumption in Sleep Mode | 0.5 W |
| Average Power Consumption | 23 W |
| Accessories | |
| Extras | Audio cable D-sub cable |
| Certificates and Standards | |
| Licenses | CE EAC ENERGY STAR Epeat Silver FCC Class B RoHS TCO Certified Displays TÜV/GS |
| Usage and Storage Requirements | |
