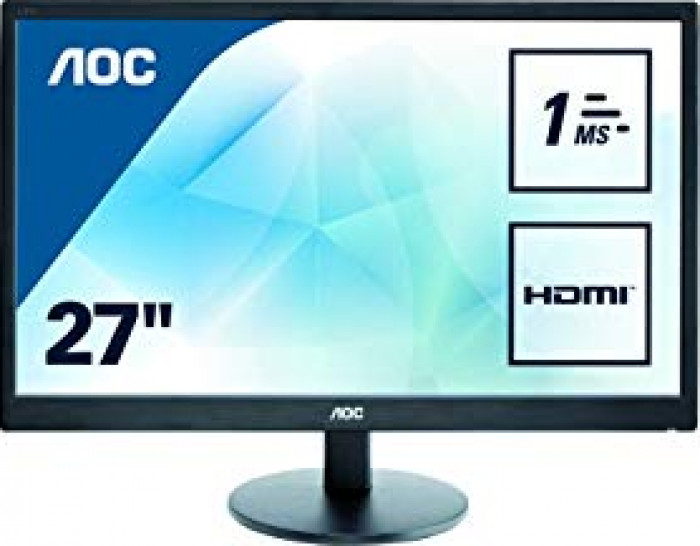

| Brand | AOC |
| Type | Monitor |
| Size | 27" (inches) |
| Panel | TN |
| Refresh Rate | 76 Hz |
| Min Response Time | 1 ms |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| General Info | |
|---|---|
| Type | Monitor |
| Year | 2013 |
| Brand | AOC |
| Model Number | E2770SH |
| Size | 27" (inches) |
| Panel | TN |
| Display | |
| Screen Size Class | 27" (inches) |
| Diagonal Size | 27 in 68.6 cm 685.8 mm 2.25 ft |
| Screen Width | 23.54 in 59.8 cm 597.888 mm 1.96 ft |
| Screen Height | 13.24 in 33.6 cm 336.312 mm 1.1 ft |
| Display Type | TN |
| Display Bit Depth | 8 bits (6 bits + FRC) |
| Frame Rate Control | Yes |
| Max Number of Colors | 16777216 |
| Bits | 24 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| Screen Pixel Pitch | 0.311 mm |
| Screen Pixel Density | 81 ppi |
| Backlight Source | W-LED |
| NTSC 1953 | 72 % |
| Screen Brightness | 300 cd/m² |
| Static Screen Contrast | 1000 : 1 |
| Dynamic Screen Contrast | 20000000 : 1 |
| Screen Horizontal Viewing Angle | 170 ° |
| Screen Vertical Viewing Angle | 160 ° |
| Display Minimum Response Time | 1 ms |
| Display Coating | Anti-glare/Matte (3H) |
| 3D | No |
| Size, weight, color | |
| Case Width with Stand | 25.29 in 64.2 cm 642.4 mm 2.11 ft |
| Case Height with Stand | 17.69 in 44.9 cm 449.3 mm 1.47 ft |
| Case Depth with Stand | 9.52 in 24.2 cm 241.9 mm 0.79 ft |
| Case Weight with Stand | 4.8 kg 11 lbs |
| Case Color | Black |
| Hardware | |
| Built-in Camera | No |
| Connectivity | 1 x D-sub 1 x 3.5 mm Audio Out 1 x HDMI 1.4 1 x DVI-D Dual Link |
| Audio | |
| Features | |
| Cool Features | HDCP (High-bandwidth Digital Content Protection) |
| Extra Features | Anti-theft stand lock slot - Kensington |
| Ergonomics | |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 100 x 100 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Forward and Backward Tilt Support | Yes |
| Forward Tilt | 5 ° |
| Backward Tilt | 15 ° |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 50 Hz - 76 Hz |
| Horizontal Digital Frequency | 30 kHz - 83 kHz |
| Power | |
| 110V | 100 V - 120 V |
| 220V | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Power Consumption When Device is Off | 0.36 W |
| Power Consumption in Sleep Mode | 0.41 W |
| Average Power Consumption | 25.55 W |
| Power Consumption in Eco Mode | 19 W |
| Maximum Power Consumption | 32 W |
| Accessories | |
| Extras | Audio cable D-sub cable HDMI cable |
| Certificates and Standards | |
| Licenses | CE EAC ENERGY STAR 6.0 FCC Class B RoHS TCO Certified Displays 6.0 TÜV/GS |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 85 % |
| Internal Storage Temperature | -25 °C - 55 °C -13 °F - 131 °F |
| Internal Storage Humidity | 5 % - 93 % |
| Max Operating Altitude | 3657.6 |
| Max Storage Altitude | 12192 |
