| Brand | NEC |
| Type | Monitor |
| Size | 23" (inches) |
| Panel | E-IPS |
| Refresh Rate | 85 Hz |
| Min Response Time | 8 ms |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| General Info | |
|---|---|
| Type | Monitor |
| Year | 2010 |
| Brand | NEC |

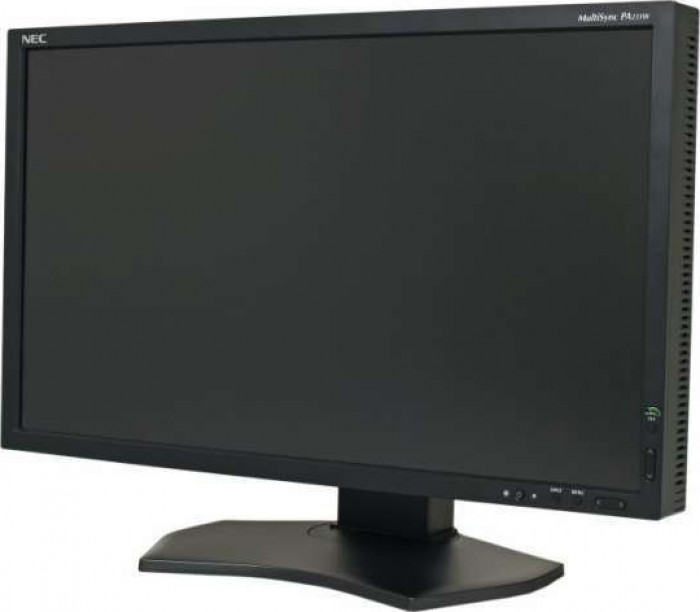

| Model Number | MultiSync PA231W |
| Alias | PA231W-BK |
| Size | 23" (inches) |
| Panel | E-IPS |
| Display | |
| Screen Size Class | 23" (inches) |
| Diagonal Size | 22.99 in 58.4 cm 584 mm 1.92 ft |
| Screen Width | 20.05 in 50.9 cm 509.184 mm 1.67 ft |
| Screen Height | 11.28 in 28.6 cm 286.416 mm 0.94 ft |
| Display Manufacturer | LG Display |
| Display Type | E-IPS |
| Display Bit Depth | 8 bits (6 bits + FRC) |
| Frame Rate Control | Yes |
| Lut | 3D LUT 14 bits |
| Max Number of Colors | 16777216 |
| Bits | 24 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| Screen Pixel Pitch | 0.265 mm |
| Screen Pixel Density | 95 ppi |
| Screen-to-Body Ratio | 83.16 % |
| Backlight Source | CCFL |
| sRGB | 102.2 % |
| Adobe RGB 1998 | 75.8 % |
| NTSC 1953 | 72 % |
| Screen Brightness | 270 cd/m² |
| Static Screen Contrast | 1000 : 1 |
| Screen Horizontal Viewing Angle | 178 ° |
| Screen Vertical Viewing Angle | 178 ° |
| Screen Input Lag | 28 ms |
| Display Minimum Response Time | 8 ms |
| Display Average Response Time | 14 ms |
| Display Coating | Anti-glare/Matte (3H) |
| 3D | No |
| Size, weight, color | |
| Case Depth | 2.9 in 7.4 cm 73.7 mm 0.24 ft |
| Case Weight | 7 kg 15 lbs |
| Case Width with Stand | 21.4 in 54.4 cm 543.6 mm 1.78 ft |
| Case Height with Stand | 13.3 in 33.8 cm 337.8 mm 1.11 ft |
| Case Depth with Stand | 9 in 22.9 cm 228.6 mm 0.75 ft |
| Case Weight with Stand | 10.2 kg 22 lbs |
| Case Color | Black |
| Hardware | |
| Built-in Camera | No |
| Connectivity | 1 x DisplayPort 2 x DVI-D Dual Link 2 x USB 2.0 (upstream) 3 x USB 2.0 (downstream) |
| Audio | |
| Features | |
| Cool Features | CableComp XtraView+ X-Light Pro Carbon Footprint Meter Picture-by-Picture EcoModes HDCP (High-bandwidth Digital Content Protection) TileMatrix Picture-in-Picture GammaComp DisplaySync Pro AmbiBright TileComp Light sensor Black Level Adjusment NaViSet software |
| Ergonomics | |
| Case Width | 21.4 in 54.4 cm 543.6 mm 1.78 ft |
| Case Height | 12.7 in 32.3 cm 322.6 mm 1.06 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 100 x 100 |
| Removable VESA Stand | Yes |
| Height Adjustment | Yes |
| Height Adjustment Range | 150 mm 15 cm 5.9055 in 0.4921 ft |
| Landscape or Portrait Pivot Support | Yes |
| Left Pivot | 0 ° |
| Right Pivot | 90 ° |
| Left or Right Swivel Support | Yes |
| Left Swivel | 45 ° |
| Right Swivel | 45 ° |
| Forward and Backward Tilt Support | Yes |
| Forward Tilt | 5 ° |
| Backward Tilt | 30 ° |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 50 Hz - 85 Hz |
| Horizontal Digital Frequency | 31.5 kHz - 118.4 kHz |
| Power | |
| 110V | 100 V - 120 V |
| 220V | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Power Consumption When Device is Off | 0.2 W |
| Average Power Consumption | 34 W |
| Power Consumption in Eco Mode | 30 W |
| Maximum Power Consumption | 46 W |
| Accessories | |
| Extras | DisplayPort cable DVI-D cable USB upstream cable |
| Certificates and Standards | |
| Licenses | C-tick CCC CE ENERGY STAR 5.0 ErP FCC Class B ISO 9241-307 MPR III PCBC/B-mark PCT/Gost PSB RoHS TCO Certified Displays 5.2 TÜV/Ergonomics TÜV/GS UL/cUL |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 30 % - 80 % |
| Internal Storage Temperature | -10 °C - 60 °C 14 °F - 140 °F |
| Internal Storage Humidity | 10 % - 85 % |
| Max Operating Altitude | 2000 |
| Max Storage Altitude | 12192 |
