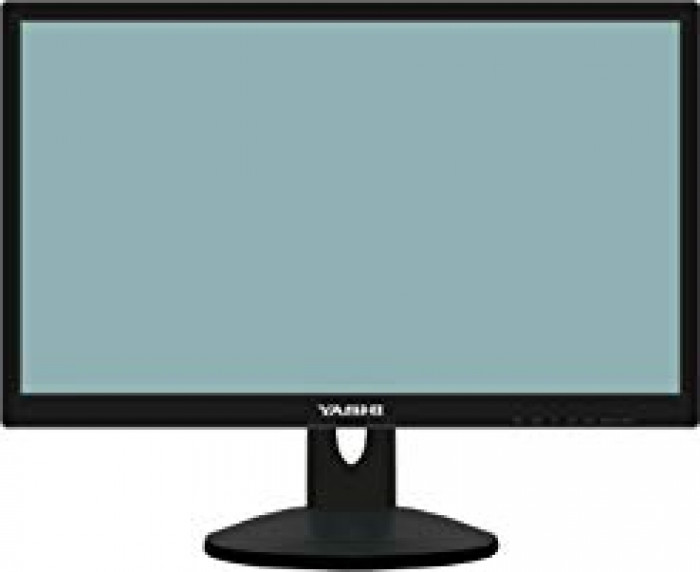

2016 23" Yashi YZ2304 Specifications

Brand Yashi
Type Monitor
Size 23" (inches)
Panel TN
Refresh Rate 60 Hz
Min Response Time 2 ms
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
General Info
Type Monitor
Year 2016
Brand Yashi
Model Series Shine
Model Number YZ2304
Size 23" (inches)
Panel TN
Display
Screen Size Class 23" (inches)
Diagonal Size 22.99 in
58.4 cm
584 mm
1.92 ft
Screen Width 20.05 in
50.9 cm
509.184 mm
1.67 ft
Screen Height 11.28 in
28.6 cm
286.416 mm
0.94 ft
Display Type TN
Display Bit Depth 8 bits (6 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Pixel Pitch 0.265 mm
Screen Pixel Density 95 ppi
Backlight Source W-LED
NTSC 1953 72 %
Screen Brightness 300 cd/m²
Static Screen Contrast 1000 : 1
Screen Horizontal Viewing Angle 170 °
Screen Vertical Viewing Angle 160 °
Display Minimum Response Time 2 ms
Display Coating Anti-glare/Matte
3D No
Size, weight, color
Case Width with Stand 21.46 in
54.5 cm
545 mm
1.79 ft
Case Height with Stand 15.83 in
40.2 cm
402 mm
1.32 ft
Case Depth with Stand 9.45 in
24 cm
240 mm
0.79 ft
Case Weight with Stand 4.3 kg
9 lbs
Case Color Black
Hardware
Built-in Camera No
Connectivity 1 x 3.5 mm Audio Out
1 x HDMI 1.4
1 x D-sub
Audio
Audio Speakers 2 x 4W
Features
Cool Features HDCP (High-bandwidth Digital Content Protection)
Low Blue Light
Extra Features Anti-theft stand lock slot - Kensington
Ergonomics
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment Yes
Height Adjustment Range 130 mm
13 cm
5.1181 in
0.4265 ft
Landscape or Portrait Pivot Support Yes
Left Pivot 0 °
Right Pivot 90 °
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.5 W
Power Consumption in Sleep Mode 0.5 W
Maximum Power Consumption 30 W
Accessories
Extras D-sub cable
Certificates and Standards
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Internal Storage Temperature -20 °C - 60 °C
-4 °F - 140 °F
