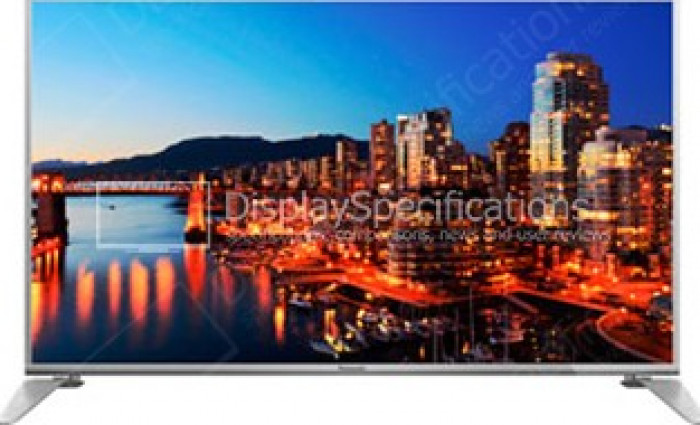

| Brand | Panasonic |
| Type | TV |
| Size | 43" (inches) |
| Panel | IPS |
| Refresh Rate | 60 Hz |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| General Info | |
|---|---|
| Type | TV |
| Year | 2016 |
| Brand | Panasonic |
| Model Series | DS630 |
| Model Number | TC-43DS630 |
| Alias | TC-43DS630C |
| Size | 43" (inches) |
| Panel | IPS |
| Display | |
| Screen Size Class | 43" (inches) |
| Diagonal Size | 42.52 in 108 cm 1080 mm 3.54 ft |
| Screen Width | 37.05 in 94.1 cm 941.184 mm 3.09 ft |
| Screen Height | 20.84 in 52.9 cm 529.416 mm 1.74 ft |
| Display Type | IPS |
| Display Bit Depth | 8 bits |
| Frame Rate Control | No |
| Max Number of Colors | 16777216 |
| Bits | 24 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| Screen Pixel Pitch | 0.49 mm |
| Screen Pixel Density | 51 ppi |
| Screen-to-Body Ratio | 92.77 % |
| Backlight Source | Edge LED |
| Screen Horizontal Viewing Angle | 178 ° |
| Screen Vertical Viewing Angle | 178 ° |
| 3D | No |
| Size, weight, color | |
| Case Depth | 3.15 in 8 cm 80 mm 0.26 ft |
| Case Weight | 9 kg 20 lbs |
| Case Width with Stand | 37.17 in 94.4 cm 944 mm 3.1 ft |
| Case Height with Stand | 24.21 in 61.5 cm 615 mm 2.02 ft |
| Case Depth with Stand | 7.95 in 20.2 cm 202 mm 0.66 ft |
| Case Weight with Stand | 10 kg 22 lbs |
| Case Color | Gray |
| Hardware | |
| System on Chip or SoC | MediaTek MT5591 |
| CPU | ARM Cortex-A9 |
| CPU Cores | 2 |
| CPU Frequency | 1200 |
| TV Tuner | Analog (NTSC/PAL/SECAM) Clear QAM ATSC |
| Built-in Camera | No |
| Network | LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz DLNA |
| Connectivity | 2 x HDMI 1.4 (ARC; CEC) 1 x AV Composite In (Video + L/R) 1 x Optical Audio Out 1 x AV Component In (YPbPr + L/R) 1 x USB 2.0 (max 0.5 A) 1 x Ethernet RJ45 |
| Audio | |
| Audio Speakers | 2 x 10W |
| Features | |
| Cool Features | Light sensor my Home Screen 2.0 TV Anywhere Voice command Viera Link (HDMI CEC) Super Bright Panel Adaptive Backlight Dimming V-Audio Surround Hexa Chroma Drive |
| Ergonomics | |
| Case Width | 37.17 in 94.4 cm 944 mm 3.1 ft |
| Case Height | 22.4 in 56.9 cm 569 mm 1.87 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 200 x 200 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | No |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 60 Hz |
| Screen Interpolation Technology | Image Motion |
| Screen Interpolation Value | 120 |
| Screen Interpolation Measurement Unit | IM |
| Power | |
| 110V | 100 V - 120 V |
| AC Frequency | 50 Hz - 60 Hz |
| Power Consumption When Device is Off | 0.2 W |
| Power Consumption in Sleep Mode | 0.2 W |
| Average Power Consumption | 66.7 W |
| Maximum Power Consumption | 100 W |
| Accessories | |
| Extras | Remote control - N2QAYB001013 |
| Certificates and Standards | |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 0 °C - 35 °C 32 °F - 95 °F |
| Safe Operating Humidity Level | 20 % - 80 % |
