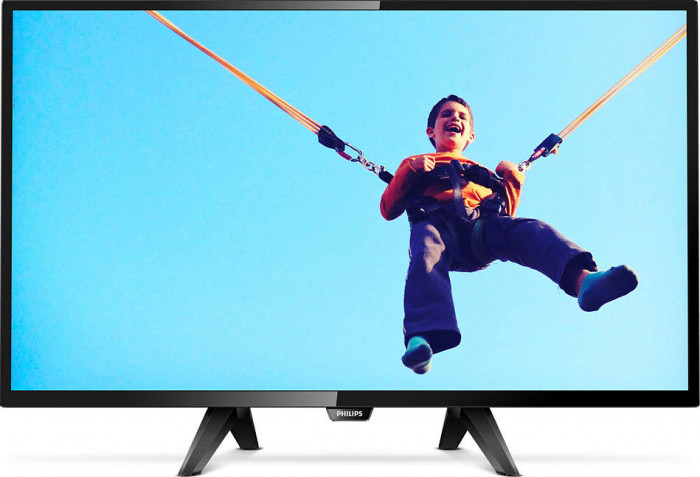

2017 32" Philips 32PHS5302/12 Specifications

Brand Philips
Type TV
Size 32" (inches)
Panel IPS, VA
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 1366 x 768
General Info
Type TV
Year 2017
Brand Philips
Model Series 5300
Model Number 32PHS5302/12
Size 32" (inches)
Panel IPS, VA
Operating System Smart TV
Display
Screen Size Class 32" (inches)
Diagonal Size 31.54 in
80.1 cm
801 mm
2.63 ft
Screen Width 27.49 in
69.8 cm
698.214 mm
2.29 ft
Screen Height 15.45 in
39.3 cm
392.554 mm
1.29 ft
Display Type IPS, VA
Display Bit Depth 8 bits
Frame Rate Control No
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1366 x 768
Screen Pixel Pitch 0.511 mm
Screen Pixel Density 50 ppi
Screen-to-Body Ratio 85.98 %
Backlight Source Direct LED
Screen Brightness 280 cd/m²
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Display Coating Glossy
3D No
Size, weight, color
Case Depth 3.04 in
7.7 cm
77.2 mm
0.25 ft
Case Weight 4.7 kg
10 lbs
Case Width with Stand 28.6 in
72.6 cm
726.49 mm
2.38 ft
Case Height with Stand 19.28 in
49 cm
489.7 mm
1.61 ft
Case Depth with Stand 7.05 in
17.9 cm
179.18 mm
0.59 ft
Case Weight with Stand 4.83 kg
11 lbs
Case Color Black
Hardware
System on Chip or SoC MediaTek MT5800
CPU Cores 2
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T
DVB-T2
DVB-C
DVB-S2
DVB-S
DVB-T2 HD
Built-in Camera No
Network LAN
Wi-Fi
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
Wi-Fi Direct
DLNA
Connectivity 2 x HDMI 1.4 (ARC; CEC; MHL)
1 x Satellite In (Main; F-type female)
1 x AV Component In (YPbPr + L/R)
1 x 3.5 mm Audio Out
1 x Optical Audio Out
1 x AV Composite In (Video + L/R)
2 x USB 2.0
1 x Antenna (RF) (female)
1 x Ethernet RJ45
1 x CI+ 1.3
Audio
Audio Speakers 2 x 8W
Features
OS Smart TV
Cool Features MultiRoom Client and Server
Pixel Plus HD
Voice command
Simply Share
HDCP (High-bandwidth Digital Content Protection)
Light sensor
Ergonomics
Case Width 28.6 in
72.6 cm
726.49 mm
2.38 ft
Case Height 17.28 in
43.9 cm
438.8 mm
1.44 ft
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Picture Performance Index
Screen Interpolation Value 500
Screen Interpolation Measurement Unit PPI
Power
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.3 W
Power Consumption in Sleep Mode 0.3 W
Average Power Consumption 24 W
Energy Class A+
Accessories
Certificates and Standards
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
