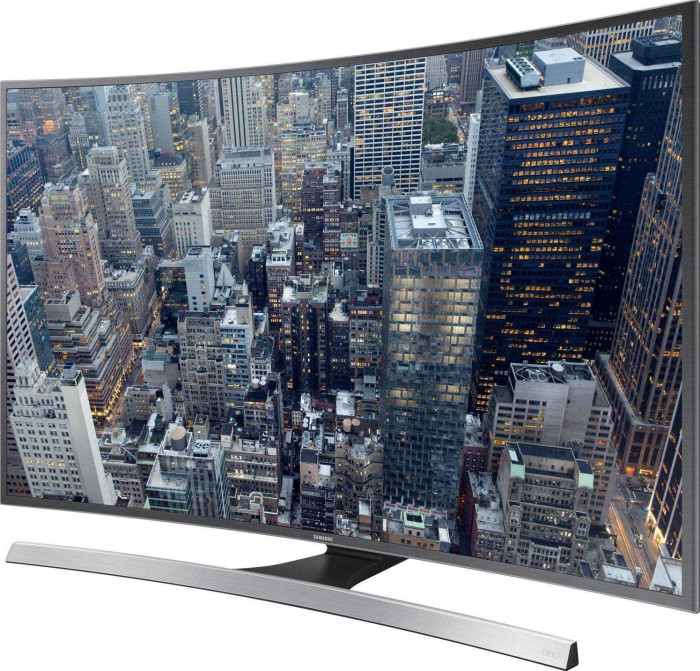

2015 40" Samsung UE40JU6690 Specifications

Brand	Samsung
Type	TV
Size	40" (inches)
Panel	SVA
Refresh Rate	60 Hz
Min Response Time	2 ms
Screen Aspect Ratio	16:9
Screen Resolution	3840 x 2160

Check on Amazon

Compare

General Info
Type	TV
Year	2015
Brand	Samsung
Model Series	JU6690
Model Number	UE40JU6690
Size	40" (inches)
Panel	SVA
Operating System	Tizen
Display
Screen Size Class	40" (inches)
Diagonal Size	40 in 101.6 cm 1016 mm 3.33 ft
Screen Width	34.86 in 88.6 cm 885.521 mm 2.91 ft
Screen Height	19.61 in 49.8 cm 498.105 mm 1.63 ft
Display Curvature	3000
Display Manufacturer	Samsung
Display Type	SVA
Display Bit Depth	8 bits
Frame Rate Control	No
Max Number of Colors	16777216
Bits	24
Screen Aspect Ratio	16:9
Screen Resolution	3840 x 2160
Screen Pixel Pitch	0.231 mm
Screen Pixel Density	110 ppi
Screen-to-Body Ratio	89.53 %
Backlight Source	Edge LED
NTSC 1953	72 %
Static Screen Contrast	1000 : 1
Dynamic Screen Contrast	1000000 : 1
Screen Horizontal Viewing Angle	178 °
Screen Vertical Viewing Angle	178 °
Screen Input Lag	28 ms
Display Minimum Response Time	2 ms
Display Average Response Time	5 ms
Display Coating	Glossy
3D	No
Size, weight, color
Case Depth	4.1 in 10.4 cm 104.2 mm 0.34 ft
Case Weight	8.1 kg 18 lbs
Case Width with Stand	36.16 in 91.9 cm 918.5 mm 3.01 ft
Case Height with Stand	23.13 in 58.8 cm 587.6 mm 1.93 ft
Case Depth with Stand	11.66 in 29.6 cm 296.2 mm 0.97 ft
Case Weight with Stand	10.2 kg 22 lbs
Case Color	Black
Hardware
System on Chip or SoC	Hawk-M
CPU Cores	4
TV Tuner	DVB-C DVB-S2 Analog (NTSC/PAL/SECAM) DVB-T2
Built-in Camera	No
Network	LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11ac (IEEE 802.11ac) Bluetooth Wi-Fi Direct DLNA
Connectivity	1 x Ethernet RJ45 4 x HDMI 2.0 (ARC; CEC; MHL) 1 x AV Composite In (Video + L/R) 1 x Optical Audio Out 1 x AV Component In (YPbPr + L/R) 1 x Satellite In (Main; F-type female) 2 x USB 2.0 1 x Antenna (RF) (female) 1 x USB 3.0 1 x CI+ 1.3
Audio
Audio Speakers	2 x 10W
Features
OS	Tizen
Cool Features	Auto Motion Plus BD Wise Plus Ultra Clear Panel Light sensor PurColor Voice command UHD Dimming Picture-in-Picture Extended PVR Anynet+ (HDMI-CEC) UHD Upscaling Smart View Auto Depth Enhancer Ultra Clean View
Extra Features	Anti-theft stand lock slot - Kensington
Ergonomics
Case Width	36.16 in 91.9 cm 918.5 mm 3.01 ft
Case Height	21.12 in 53.6 cm 536.4 mm 1.76 ft
Vesa Mount Support	Yes
VESA Interface Standard Size	200 x 200
Removable VESA Stand	Yes
Height Adjustment	No
Landscape or Portrait Pivot Support	No
Left or Right Swivel Support	No
Forward and Backward Tilt Support	Yes
Forward Tilt	14 °
Backward Tilt	35 °
Frequency and Interpolation
Vertical Digital Frequency	60 Hz
Screen Interpolation Technology	Picture Quality Index
Screen Interpolation Value	1100
Screen Interpolation Measurement Unit	PQI
Power
110V	100 V - 120 V
220V	220 V - 240 V
AC Frequency	50 Hz - 60 Hz
Power Consumption When Device is Off	0.5 W
Power Consumption in Sleep Mode	0.5 W
Average Power Consumption	65 W
Maximum Power Consumption	135 W
Energy Class	A
Accessories
Extras	Remote control - TM1240A Smart remote control - TM1560A Wall mount adapter
Certificates and Standards
Usage and Storage Requirements
Safe Operating Temperature Level	10 °C - 40 °C 50 °F - 104 °F
Safe Operating Humidity Level	10 % - 80 %
Internal Storage Temperature	-20 °C - 45 °C -4 °F - 113 °F
Internal Storage Humidity	5 % - 95 %
