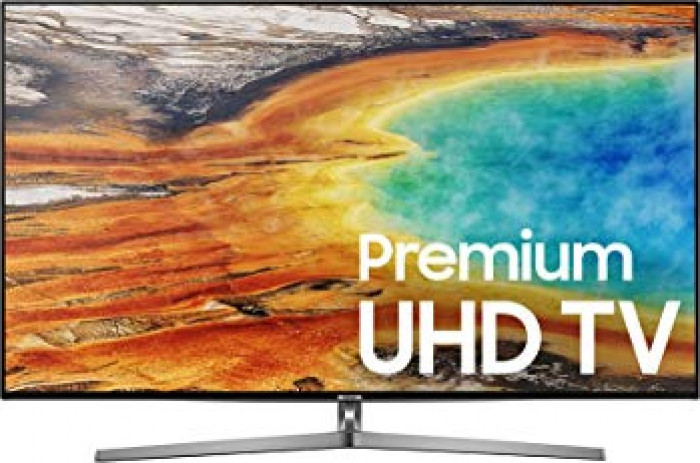

| Brand | Samsung |
| Type | TV |
| Size | 75" (inches) |
| Panel | VA |
| Refresh Rate | 120 Hz |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 3840 x 2160 |
| General Info | |
|---|---|
| Type | TV |
| Year | 2017 |
| Brand | Samsung |
| Model Series | MU9000 |
| Model Number | UN75MU9000 |
| Alias | UN75MU9000FXZA |
| Size | 75" (inches) |
| Panel | VA |
| Operating System | Tizen 3.0 |
| Display | |
| Screen Size Class | 75" (inches) |
| Diagonal Size | 74.53 in 189.3 cm 1893 mm 6.21 ft |
| Screen Width | 64.96 in 165 cm 1649.89 mm 5.41 ft |
| Screen Height | 36.54 in 92.8 cm 928.065 mm 3.04 ft |
| Display Type | VA |
| Display Bit Depth | 10 bits |
| Max Number of Colors | 1073741824 |
| Bits | 30 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 3840 x 2160 |
| Screen Pixel Pitch | 0.43 mm |
| Screen Pixel Density | 59 ppi |
| Screen-to-Body Ratio | 94.13 % |
| Backlight Source | Edge LED |
| Screen Horizontal Viewing Angle | 178 ° |
| Screen Vertical Viewing Angle | 178 ° |
| Display Coating | Glossy |
| HDR | HDR10 HLG (Hybrid Log Gamma) |
| 3D | No |
| Size, weight, color | |
| Case Depth | 2.2 in 5.6 cm 56 mm 0.18 ft |
| Case Width with Stand | 66 in 167.6 cm 1676.4 mm 5.5 ft |
| Case Height with Stand | 41.8 in 106.2 cm 1061.7 mm 3.48 ft |
| Case Depth with Stand | 17.6 in 44.7 cm 447 mm 1.47 ft |
| Case Color | Black |
| Hardware | |
| CPU Cores | 4 |
| TV Tuner | Analog (NTSC/PAL/SECAM) Clear QAM ATSC |
| Built-in Camera | No |
| Network | LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) Bluetooth Wi-Fi Direct DLNA |
| Connectivity | 4 x HDMI 2.0 (ARC; CEC) 1 x Satellite In (Main; F-type female) 1 x RS232 (C) 1 x Optical Audio Out 3 x USB 2.0 1 x Ethernet RJ45 |
| Audio | |
| Audio Speakers | 2 x 10W |
| Features | |
| OS | Tizen 3.0 |
| Cool Features | Anynet+ (HDMI-CEC) Ultra Clear Panel UHD Upscaling Voice command DIRECTV Precision Black HDCP (High-bandwidth Digital Content Protection) 2.2 Local Dimming UHD Remastering Engine Supreme UHD Dimming Light sensor Extended PVR 4K Color Drive Extreme Triple Black Extreme Peak Illuminator Pro 4K HDR Extreme Picture-in-Picture |
| Ergonomics | |
| Case Width | 66 in 167.6 cm 1676.4 mm 5.5 ft |
| Case Height | 38.2 in 97 cm 970.3 mm 3.18 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 400 x 400 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | No |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 120 Hz |
| Screen Interpolation Technology | Motion Rate |
| Screen Interpolation Value | 240 |
| Screen Interpolation Measurement Unit | MR |
| Power | |
| 110V | 100 V - 120 V |
| AC Frequency | 50 Hz - 60 Hz |
| Power Consumption in Sleep Mode | 0.4 W |
| Accessories | |
| Extras | One Connect Box Mini One connect cable Smart remote control - TM1750A |
| Certificates and Standards | |
| Licenses | ENERGY STAR RoHS |
| Usage and Storage Requirements | |
