| General Info | ||
|---|---|---|

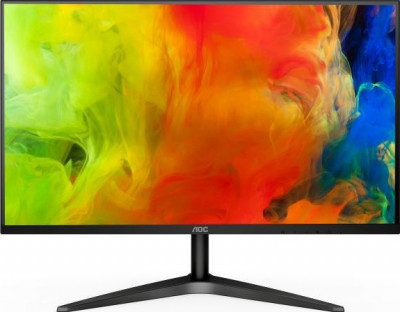

| Model Number | AOC 24B1XH5/BS | AOC I24B10 |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2020 | 2020 |
| Brand | AOC | AOC |
| Model Number | 24B1XH5/BS | I24B10 |
| Alias | 24B1XH5 | |
| Display | ||
| Screen Size Class | 24" (inches) | 24" (inches) |
| Diagonal Size | 23.81 in 60.5 cm 604.7 mm 1.98 ft |
23.81 in 60.5 cm 604.7 mm 1.98 ft |
| Screen Width | 20.75 in 52.7 cm 527.04 mm 1.73 ft |
20.75 in 52.7 cm 527 mm 1.73 ft |
| Screen Height | 11.67 in 29.6 cm 296.46 mm 0.97 ft |
11.67 in 29.6 cm 296.46 mm 0.97 ft |
| Display Type | AH-IPS | IPS |
| Display Bit Depth | 8 bits | 8 bits (6 bits + FRC) |
| Frame Rate Control | Yes | |
| Max Number of Colors | 16777216 | 16777216 |
| Bits | 24 | 24 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 1920 x 1080 | 1920 x 1080 |
| Screen Pixel Pitch | 0.275 mm | 0.275 mm |
| Screen Pixel Density | 92 ppi | 92 ppi |
| Screen-to-Body Ratio | 90.09 % | 90.96 % |
| Backlight Source | W-LED | W-LED |
| Screen Brightness | 250 cd/m² | |
| Static Screen Contrast | 1000 : 1 | 1000 : 1 |
| Dynamic Screen Contrast | 20000000 : 1 | 20000000 : 1 |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Display Minimum Response Time | 8 ms | 4 ms |
| Display Coating | Anti-glare/Matte | |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 1.46 in 3.7 cm 37.1 mm 0.12 ft |
1.44 in 3.7 cm 36.5 mm 0.12 ft |
| Case Weight | 2.38 kg 5 lbs |
2.9 kg 6 lbs |
| Case Width with Stand | 21.29 in 54.1 cm 540.8 mm 1.77 ft |
21.21 in 53.9 cm 538.8 mm 1.77 ft |
| Case Height with Stand | 16.52 in 42 cm 419.6 mm 1.38 ft |
16.06 in 40.8 cm 408 mm 1.34 ft |
| Case Depth with Stand | 7.35 in 18.7 cm 186.8 mm 0.61 ft |
5.89 in 15 cm 149.7 mm 0.49 ft |
| Case Weight with Stand | 2.73 kg 6 lbs |
3.1 kg 7 lbs |
| Case Color | Black | Black |
| Hardware | ||
| Built-in Camera | No | No |
| Connectivity | 1 x 3.5 mm Audio Out 1 x HDMI 1.4 1 x D-sub |
1 x 3.5 mm Audio Out 2 x HDMI 2.0 1 x D-sub |
| Audio | ||
| Features | ||
| Cool Features | Flicker-free technology Low Blue Light Eco modes Clear Vision |
Dynamic Colour Boost (DCB) technology Dynamic Contrast Ratio (DCR) technology HDR Mode Low Blue Light Flicker-free technology Clear Vision DDC2B/CI |
| Extra Features | Anti-theft stand lock slot - Kensington | |
| Ergonomics | ||
| Case Width | 21.29 in 54.1 cm 540.8 mm 1.77 ft |
21.21 in 53.9 cm 538.8 mm 1.77 ft |
| Case Height | 12.63 in 32.1 cm 320.7 mm 1.05 ft |
12.55 in 31.9 cm 318.8 mm 1.05 ft |
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 75 x 75 | 100 x 100 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | No |
| Landscape or Portrait Pivot Support | No | No |
| Left or Right Swivel Support | No | No |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 5 ° | 5 ° |
| Backward Tilt | 23 ° | 15 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 50 Hz - 76 Hz | 23 Hz - 75 Hz |
| Horizontal Digital Frequency | 30 kHz - 83 kHz | 30 kHz - 85 kHz |
| Screen Interpolation Measurement Unit | NULL | NULL |
| Accessories | ||
| Extras | D-sub cable | HDMI cable |
| Certificates and Standards | ||
| Licenses | CCC CH RoHS CEL Win10 CECP |
CCC CE CECP CEL CH RoHS cTUVus FCC ISO 9241-307 RoHS TUV Rheinland Low Blue Light Win10 |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 85 % | 10 % - 85 % |
| Internal Storage Temperature | -20 °C - 60 °C -4 °F - 140 °F |
|
| Internal Storage Humidity | 5 % - 90 % | |
| Max Operating Altitude | 3657.6 | |
| Max Storage Altitude | 12192 |
| AOC 24B1XH5/BS | AOC I24B10 |
