| General Info | ||
|---|---|---|

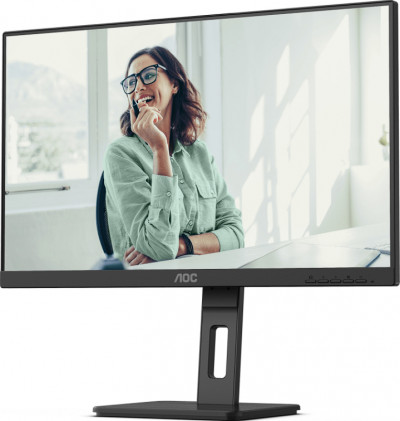

| Model Number | AOC 24E3UM | AOC 24P3CW |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2023 | 2023 |
| Brand | AOC | AOC |
| Model Number | 24E3UM | 24P3CW |
| Alias | 24E3UM/BK | |
| Display | ||
| Screen Size Class | 24" (inches) | 24" (inches) |
| Diagonal Size | 23.81 in 60.5 cm 604.7 mm 1.98 ft |
23.81 in 60.5 cm 604.7 mm 1.98 ft |
| Screen Width | 20.75 in 52.7 cm 527.04 mm 1.73 ft |
20.75 in 52.7 cm 527.04 mm 1.73 ft |
| Screen Height | 11.67 in 29.6 cm 296.46 mm 0.97 ft |
11.67 in 29.6 cm 296.46 mm 0.97 ft |
| Display Type | VA | IPS |
| Display Bit Depth | 8 bits | 8 bits |
| Frame Rate Control | No | No |
| Max Number of Colors | 16777216 | 16777216 |
| Bits | 24 | 24 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 1920 x 1080 | 1920 x 1080 |
| Screen Pixel Pitch | 0.275 mm | 0.275 mm |
| Screen Pixel Density | 92 ppi | 92 ppi |
| Screen-to-Body Ratio | 88.65 % | |
| Backlight Source | W-LED | W-LED |
| sRGB | 123 % | |
| Adobe RGB 1998 | 91 % | |
| NTSC 1953 | 87 % | |
| Screen Brightness | 300 cd/m² | 300 cd/m² |
| Static Screen Contrast | 3000 : 1 | 1000 : 1 |
| Dynamic Screen Contrast | 20000000 : 1 | 20000000 : 1 |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Display Minimum Response Time | 4 ms | 4 ms |
| Display Coating | Anti-glare/Matte (3H) | Anti-glare/Matte (3H) |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 2 in 5.1 cm 50.7 mm 0.17 ft |
|
| Case Width with Stand | 21.26 in 54 cm 540 mm 1.77 ft |
|
| Case Height with Stand | 16.1 in 40.9 cm 409 mm 1.34 ft |
|
| Case Depth with Stand | 7.39 in 18.8 cm 187.7 mm 0.62 ft |
|
| Case Weight with Stand | 3.28 kg 7 lbs |
|
| Case Color | Black | Black |
| Hardware | ||
| Built-in Camera | No | Yes |
| Network | LAN | |
| Connectivity | 1 x DisplayPort 1.2 1 x D-sub 1 x 3.5 mm Audio Out 1 x 3.5 mm Audio In 2 x USB 3.2 (Type-A; Gen 1; downstream; BC 1.2 charging at 2A) 2 x HDMI 1.4 |
1 x Ethernet RJ45 2 x HDMI 1.4 1 x DisplayPort 1.2 (out) 1 x 3.5 mm Audio Out 1 x DisplayPort 1.2 (HBR3) 4 x USB 3.2 (Type-A; Gen 1; downstream; BC 1.2 charging at 2A) 1 x USB 3.2 (Type-C; Gen 1; upstream; 65W; DP Alt Mode) |
| Audio | ||
| Audio Speakers | 2 x 2W | 2 x 5W |
| Features | ||
| Cool Features | Flicker-free technology Low Blue Light 3-sided frameless design Adaptive-Sync technology |
Flicker-free technology Low Blue Light 3-sided frameless design Adaptive-Sync technology |
| Extra Features | Anti-theft stand lock slot - Kensington | Anti-theft stand lock slot - Kensington |
| Ergonomics | ||
| Case Width | 21.26 in 54 cm 540 mm 1.77 ft |
|
| Case Height | 12.85 in 32.6 cm 326.4 mm 1.07 ft |
|
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 100 x 100 | 100 x 100 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | Yes |
| Height Adjustment Range | 150 mm 15 cm 5.9055 in 0.4921 ft |
|
| Landscape or Portrait Pivot Support | No | Yes |
| Left Pivot | 90 ° | |
| Right Pivot | 90 ° | |
| Left or Right Swivel Support | No | Yes |
| Left Swivel | 180 ° | |
| Right Swivel | 180 ° | |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 5 ° | 5 ° |
| Backward Tilt | 23 ° | 35 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 48 Hz - 75 Hz | 48 Hz - 75 Hz |
| Horizontal Digital Frequency | 30 kHz - 85 kHz | 30 kHz - 114 kHz |
| Screen Interpolation Measurement Unit | NULL | NULL |
| Accessories | ||
| Extras | HDMI cable | DisplayPort cable (optional) HDMI cable (optional) USB Type-C cable (optional) |
| Certificates and Standards | ||
| Licenses | HF Microsoft WHQL WEEE |
HF Microsoft WHQL WEEE |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 85 % | 10 % - 85 % |
| Internal Storage Temperature | -25 °C - 55 °C -13 °F - 131 °F |
-25 °C - 55 °C -13 °F - 131 °F |
| Internal Storage Humidity | 5 % - 93 % | 5 % - 93 % |
| Max Operating Altitude | 5000 | 5000 |
| Max Storage Altitude | 12192 | 12192 |
| AOC 24E3UM | AOC 24P3CW |
