| General Info | ||
|---|---|---|

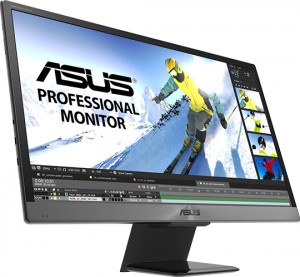

| Model Number | Asus ProArt PQ22UC | AOC 24B1H |
|
|
|
| Price | ||
| Type | Monitor | Monitor |
| Year | 2019 | 2018 |
| Brand | Asus | AOC |
| Model Number | ProArt PQ22UC | 24B1H |
| Display | ||
| Screen Size Class | 22" (inches) | 24" (inches) |
| Diagonal Size | 21.5 in 54.6 cm 546.1 mm 1.79 ft |
23.58 in 59.9 cm 599 mm 1.97 ft |
| Screen Width | 18.82 in 47.8 cm 478.08 mm 1.57 ft |
20.53 in 52.1 cm 521.39 mm 1.71 ft |
| Screen Height | 10.59 in 26.9 cm 268.92 mm 0.88 ft |
11.55 in 29.3 cm 293.28 mm 0.96 ft |
| Display Type | OLED | MVA |
| Display Bit Depth | 10 bits | 8 bits (6 bits + FRC) |
| Frame Rate Control | No | Yes |
| Lut | 14 bits | |
| Max Number of Colors | 1073741824 | 16777216 |
| Bits | 30 | 24 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 3840 x 2160 | 1920 x 1080 |
| Screen Pixel Pitch | 0.125 mm | 0.272 mm |
| Screen Pixel Density | 204 ppi | 93 ppi |
| Screen-to-Body Ratio | 80.17 % | |
| Backlight Source | W-LED | |
| DCI P3 | 99% | |
| sRGB | 100 % | 100 % |
| Adobe RGB 1998 | 99.5 % | |
| NTSC 1953 | 90 % | |
| Screen Brightness | 140 cd/m² | 250 cd/m² |
| Max Screen Brightness | 335 cd/m² | |
| Static Screen Contrast | 10000000 : 1 | 3000 : 1 |
| Dynamic Screen Contrast | 50000000 : 1 | |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| Display Minimum Response Time | 0.1 ms | 8 ms |
| Display Coating | Anti-glare/Matte (3H) | Anti-glare/Matte (3H) |
| HDR | HDR10 HLG (Hybrid Log Gamma) |
|
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 0.33 in 0.9 cm 8.5 mm 0.03 ft |
|
| Case Weight | 1.5 kg 3 lbs |
|
| Case Width with Stand | 20.11 in 51.1 cm 510.9 mm 1.68 ft |
21.26 in 54 cm 540.1 mm 1.77 ft |
| Case Height with Stand | 15.04 in 38.2 cm 382.1 mm 1.25 ft |
16.43 in 41.7 cm 417.4 mm 1.37 ft |
| Case Depth with Stand | 5.05 in 12.8 cm 128.2 mm 0.42 ft |
7.35 in 18.7 cm 186.8 mm 0.61 ft |
| Case Weight with Stand | 2.1 kg 5 lbs |
2.6 kg 6 lbs |
| Case Color | Gray | Black |
| Hardware | ||
| Built-in Camera | No | No |
| Connectivity | 1 x DisplayPort 1.2 (through Type-C) 2 x USB 3.0 (Type-C) 1 x HDMI 2.0 (Micro) |
1 x 3.5 mm Audio Out 1 x HDMI 1.4 1 x D-sub |
| Audio | ||
| Features | ||
| Cool Features | Picture-by-Picture Picture-in-Picture SPLENDID Video Intelligence Technology Gamma adjustment HDCP (High-bandwidth Digital Content Protection) |
HDCP (High-bandwidth Digital Content Protection) |
| Extra Features | Security lock slot | |
| Ergonomics | ||
| Case Width | 20.11 in 51.1 cm 510.9 mm 1.68 ft |
|
| Case Height | 12.36 in 31.4 cm 313.9 mm 1.03 ft |
|
| Vesa Mount Support | No | No |
| VESA Interface Standard Size | 75 x 75 | |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | No |
| Landscape or Portrait Pivot Support | No | No |
| Left or Right Swivel Support | No | No |
| Forward and Backward Tilt Support | Yes | Yes |
| Forward Tilt | 2 ° | 3.5 ° |
| Backward Tilt | 20 ° | 21.5 ° |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 24 Hz - 60 Hz | 50 Hz - 76 Hz |
| Horizontal Digital Frequency | 27 kHz - 134 kHz | 30 kHz - 83 kHz |
| Accessories | ||
| Extras | Micro HDMI to HDMI cable USB Type-C cable |
HDMI cable |
| Certificates and Standards | ||
| Licenses | BSMI C-Tick CB CCC CE CU ENERGY STAR ErP FCC J-MOSS RoHS UL/cUL VCCI WEEE WHQL (Windows 10; Windows 8.1; Windows 7) |
BSMI CE EAC ENERGY STAR FCC Class B |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 0 °C - 50 °C 32 °F - 122 °F |
0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 85 % | |
| Internal Storage Temperature | 20 °C - 60 °C 68 °F - 140 °F |
-25 °C - 55 °C -13 °F - 131 °F |
| Internal Storage Humidity | 5 % - 93 % | |
| Max Operating Altitude | 5000 | |
| Max Storage Altitude | 12192 |
| Asus ProArt PQ22UC | AOC 24B1H |
