| General Info | |
|---|---|

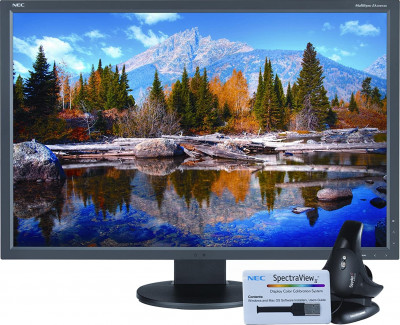

| Model Number | NEC MultiSync EA304WMi-BK-SV |
|
|
| Price | |
| Type | Monitor |
| Year | 2014 |
| Brand | NEC |
| Model Number | MultiSync EA304WMi-BK-SV |
| Display | |
| Screen Size Class | 30" (inches) |
| Diagonal Size | 29.77 in 75.6 cm 756.2 mm 2.48 ft |
| Screen Width | 25.25 in 64.1 cm 641.28 mm 2.1 ft |
| Screen Height | 15.78 in 40.1 cm 400.8 mm 1.31 ft |
| Display Manufacturer | LG Display |
| Display Type | AH-IPS |
| Display Bit Depth | 10 bits |
| Frame Rate Control | No |
| Max Number of Colors | 1073741824 |
| Bits | 30 |
| Screen Aspect Ratio | 16:10 |
| Screen Resolution | 2560 x 1600 |
| Screen Pixel Pitch | 0.251 mm |
| Screen Pixel Density | 101 ppi |
| Screen-to-Body Ratio | 83.78 % |
| Backlight Source | GB-r LED |
| sRGB | 146.4 % |
| Adobe RGB 1998 | 99.3 % |
| NTSC 1953 | 94.8 % |
| Screen Brightness | 350 cd/m² |
| Static Screen Contrast | 1000 : 1 |
| Dynamic Screen Contrast | 2000000 : 1 |
| Screen Horizontal Viewing Angle | 178 ° |
| Screen Vertical Viewing Angle | 178 ° |
| Screen Input Lag | 21.5 ms |
| Display Minimum Response Time | 6 ms |
| Display Coating | Anti-glare/Matte (3H) |
| 3D | No |
| Size, weight, color | |
| Case Depth | 2.96 in 7.5 cm 75.1 mm 0.25 ft |
| Case Weight | 7.8 kg 17 lbs |
| Case Width with Stand | 27.05 in 68.7 cm 687 mm 2.25 ft |
| Case Height with Stand | 18.61 in 47.3 cm 472.8 mm 1.55 ft |
| Case Depth with Stand | 9.06 in 23 cm 230 mm 0.75 ft |
| Case Weight with Stand | 10.9 kg 24 lbs |
| Case Color | Black |
| Hardware | |
| Built-in Camera | No |
| Connectivity | 1 x USB 3.0 (downstream) 1 x HDMI 2.0 1 x DVI-D Dual Link 1 x 3.5 mm Audio In 1 x D-sub 2 x DisplayPort 1.2 1 x USB 2.0 (downstream) 1 x 3.5 mm Audio Out 1 x USB 3.0 (upstream) |
| Audio | |
| Audio Speakers | 2 x 1W |
| Features | |
| Cool Features | EcoModes Human sensor XtraView NaViSet software Resettable Cost Meter Picture-by-Picture Light sensor Carbon Footprint Meter SpectraView II ControlSync VESA DDC2B |
| Extra Features | ControlSync IN/OUT port - 2.5 mm stereo jack |
| Ergonomics | |
| Case Width | 27.04 in 68.7 cm 686.9 mm 2.25 ft |
| Case Height | 17.58 in 44.7 cm 446.6 mm 1.47 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 100 x 100 |
| Removable VESA Stand | Yes |
| Height Adjustment | Yes |
| Height Adjustment Range | 130 mm 13 cm 5.1181 in 0.4265 ft |
| Landscape or Portrait Pivot Support | Yes |
| Left Pivot | 0 ° |
| Right Pivot | 90 ° |
| Left or Right Swivel Support | Yes |
| Left Swivel | 45 ° |
| Right Swivel | 45 ° |
| Forward and Backward Tilt Support | Yes |
| Forward Tilt | 5 ° |
| Backward Tilt | 30 ° |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 56 Hz - 75 Hz |
| Horizontal Digital Frequency | 31.5 kHz - 98.7 kHz |
| Accessories | |
| Extras | Color calibration sensor (CC-Spyder4) ControlSync cable DisplayPort cable DVI cable USB 3.0 upstream cable |
| Certificates and Standards | |
| Licenses | CE ENERGY STAR 6.0 ErP FCC Class B ISO 9241-307 Class I MPR II / MPR III RoHS TCO Certified Displays 6.0 TCO Edge 2 TÜV/Ergonomics TÜV/GS UL/cUL |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 20 % - 80 % |
| Internal Storage Temperature | -10 °C - 60 °C 14 °F - 140 °F |
| Internal Storage Humidity | 10 % - 85 % |
| Max Operating Altitude | 5000 |
| Max Storage Altitude | 12192 |
| NEC MultiSync EA304WMi-BK-SV |
