| General Info | ||
|---|---|---|

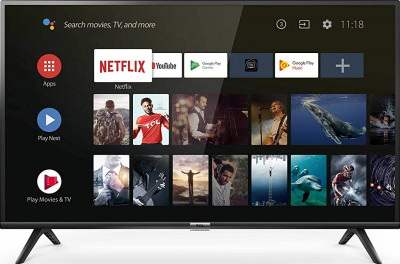

| Model Number | TCL 40ES561 | TCL 32ES560 |
|
|
|
| Price | ||
| Type | TV | TV |
| Year | 2018 | 2018 |
| Brand | TCL | TCL |
| Model Series | S56 | S56 |
| Model Number | 40ES561 | 32ES560 |
| Display | ||
| Screen Size Class | 40" (inches) | 32" (inches) |
| Diagonal Size | 40 in 101.6 cm 1016 mm 3.33 ft |
31.54 in 80.1 cm 801 mm 2.63 ft |
| Screen Width | 34.86 in 88.6 cm 885.521 mm 2.91 ft |
27.49 in 69.8 cm 698.214 mm 2.29 ft |
| Screen Height | 19.61 in 49.8 cm 498.105 mm 1.63 ft |
15.45 in 39.3 cm 392.554 mm 1.29 ft |
| Display Type | VA | |
| Display Bit Depth | 8 bits | 8 bits |
| Frame Rate Control | No | No |
| Max Number of Colors | 16777216 | 16777216 |
| Bits | 24 | 24 |
| Screen Aspect Ratio | 16:9 | 16:9 |
| Screen Resolution | 1920 x 1080 | 1366 x 768 |
| Screen Pixel Pitch | 0.461 mm | 0.511 mm |
| Screen Pixel Density | 55 ppi | 50 ppi |
| Screen-to-Body Ratio | 93.01 % | 86.08 % |
| Backlight Source | Direct LED | Direct LED |
| Screen Brightness | 270 cd/m² | 250 cd/m² |
| Screen Horizontal Viewing Angle | 178 ° | 178 ° |
| Screen Vertical Viewing Angle | 178 ° | 178 ° |
| 3D | No | No |
| Size, weight, color | ||
| Case Depth | 2.95 in 7.5 cm 75 mm 0.25 ft |
3.15 in 8 cm 80 mm 0.26 ft |
| Case Weight | 6.3 kg 14 lbs |
3.9 kg 9 lbs |
| Case Width with Stand | 35.63 in 90.5 cm 905 mm 2.97 ft |
28.82 in 73.2 cm 732 mm 2.4 ft |
| Case Height with Stand | 22.64 in 57.5 cm 575 mm 1.89 ft |
18.9 in 48 cm 480 mm 1.57 ft |
| Case Depth with Stand | 7.48 in 19 cm 190 mm 0.62 ft |
6.89 in 17.5 cm 175 mm 0.57 ft |
| Case Weight with Stand | 6.4 kg 14 lbs |
4 kg 9 lbs |
| Case Color | Black | Black |
| Hardware | ||
| CPU Cores | 4 | 4 |
| Internal Storage | 16 | 16 |
| TV Tuner | Analog (NTSC/PAL/SECAM) DVB-T2 DVB-S2 DVB-C DVB-T DVB-S |
Analog (NTSC/PAL/SECAM) DVB-T2 DVB-S2 DVB-C DVB-T DVB-S |
| Built-in Camera | No | No |
| Network | LAN Wi-Fi 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) Wi-Fi Direct DLNA |
LAN Wi-Fi 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) Wi-Fi Direct DLNA |
| Connectivity | 2 x HDMI 1.4 (ARC; CEC) 1 x Satellite In (Main; F-type female) 1 x AV Component In (YPbPr + L/R) 1 x 3.5 mm Audio Out 1 x S/PDIF 1 x AV Composite In (Video + L/R) 1 x USB 2.0 1 x Antenna (RF) (female) 1 x Ethernet RJ45 1 x CI+ |
2 x HDMI 1.4 (ARC; CEC) 1 x Satellite In (Main; F-type female) 1 x AV Component In (YPbPr + L/R) 1 x 3.5 mm Audio Out 1 x S/PDIF 1 x AV Composite In (Video + L/R) 1 x USB 2.0 1 x Antenna (RF) (female) 1 x Ethernet RJ45 1 x CI+ |
| Audio | ||
| Audio Speakers | 2 x 8W | 2 x 5W |
| Features | ||
| OS | Android 8.0 Oreo | Android 8.0 Oreo |
| Cool Features | Mega Dynamic Contrast Micro Dimming Pure Image Ultra Picture Noise Reduction Color Extender HDCP (High-bandwidth Digital Content Protection) |
Mega Dynamic Contrast Micro Dimming Pure Image Ultra Picture Noise Reduction Color Extender HDCP (High-bandwidth Digital Content Protection) |
| Ergonomics | ||
| Case Width | 35.63 in 90.5 cm 905 mm 2.97 ft |
28.82 in 73.2 cm 732 mm 2.4 ft |
| Case Height | 20.63 in 52.4 cm 524 mm 1.72 ft |
17.13 in 43.5 cm 435 mm 1.43 ft |
| Vesa Mount Support | Yes | Yes |
| VESA Interface Standard Size | 100 x 100 | 100 x 100 |
| Removable VESA Stand | Yes | Yes |
| Height Adjustment | No | No |
| Landscape or Portrait Pivot Support | No | No |
| Left or Right Swivel Support | No | No |
| Forward and Backward Tilt Support | No | No |
| Frequency and Interpolation | ||
| Vertical Digital Frequency | 60 Hz | 60 Hz |
| Screen Interpolation Technology | Picture Performance Index | Picture Performance Index |
| Screen Interpolation Value | 200 | 300 |
| Screen Interpolation Measurement Unit | PPI | PPI |
| Accessories | ||
| Extras | Remote control - RC802N1 | Remote control - RC802N1 |
| Certificates and Standards | ||
| Licenses | RoHS | RoHS |
| Usage and Storage Requirements | ||
| Safe Operating Temperature Level | 5 °C - 35 °C 41 °F - 95 °F |
5 °C - 35 °C 41 °F - 95 °F |
| Safe Operating Humidity Level | 20 % - 80 % | 20 % - 80 % |
| Internal Storage Temperature | -15 °C - 45 °C 5 °F - 113 °F |
-15 °C - 45 °C 5 °F - 113 °F |
| Internal Storage Humidity | 10 % - 90 % | 10 % - 90 % |
| TCL 40ES561 | TCL 32ES560 |
