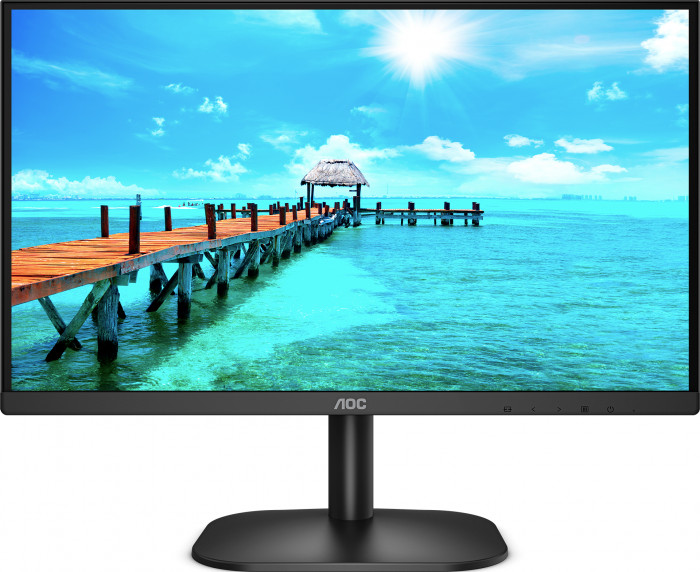

| Brand | AOC |
| Type | Monitor |
| Size | 22" (inches) |
| Panel | VA |
| Refresh Rate | 75 Hz |
| Min Response Time | 4 ms |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| General Info | |
|---|---|
| Type | Monitor |
| Year | 2020 |
| Brand | AOC |
| Model Number | 22B2D |
| Size | 22" (inches) |
| Panel | VA |
| Display | |
| Screen Size Class | 22" (inches) |
| Diagonal Size | 21.5 in 54.6 cm 546.1 mm 1.79 ft |
| Screen Width | 18.77 in 47.7 cm 476.64 mm 1.56 ft |
| Screen Height | 10.56 in 26.8 cm 268.11 mm 0.88 ft |
| Display Type | VA |
| Display Bit Depth | 8 bits (6 bits + FRC) |
| Frame Rate Control | Yes |
| Max Number of Colors | 16777216 |
| Bits | 24 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| Screen Pixel Pitch | 0.248 mm |
| Screen Pixel Density | 102 ppi |
| Screen-to-Body Ratio | 88.6 % |
| Backlight Source | W-LED |
| sRGB | 98 % |
| Adobe RGB 1998 | 77 % |
| Screen Brightness | 200 cd/m² |
| Static Screen Contrast | 3000 : 1 |
| Dynamic Screen Contrast | 200000000 : 1 |
| Screen Horizontal Viewing Angle | 178 ° |
| Screen Vertical Viewing Angle | 178 ° |
| Display Minimum Response Time | 4 ms |
| Display Coating | Anti-glare/Matte (3H) |
| 3D | No |
| Size, weight, color | |
| Case Depth | 1.43 in 3.6 cm 36.2 mm 0.12 ft |
| Case Width with Stand | 19.4 in 49.3 cm 492.78 mm 1.62 ft |
| Case Height with Stand | 15.28 in 38.8 cm 388.11 mm 1.27 ft |
| Case Depth with Stand | 6.41 in 16.3 cm 162.94 mm 0.53 ft |
| Case Weight with Stand | 2.1 kg 5 lbs |
| Case Color | Black |
| Hardware | |
| Built-in Camera | No |
| Connectivity | 1 x DVI-D 1 x D-sub |
| Audio | |
| Features | |
| Cool Features | Clear Vision DDC2B Low Blue Light Flicker-free technology 3-sided Frameless Design Adaptive-Sync technology |
| Ergonomics | |
| Case Width | 19.4 in 49.3 cm 492.78 mm 1.62 ft |
| Case Height | 11.52 in 29.3 cm 292.68 mm 0.96 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 100 x 100 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | Yes |
| Forward Tilt | 5 ° |
| Backward Tilt | 21.5 ° |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 48 Hz - 75 Hz |
| Horizontal Digital Frequency | 30 kHz - 835 kHz |
| Screen Interpolation Measurement Unit | NULL |
| Power | |
| 110V | 100 V - 120 V |
| 220V | 220 V - 240 V |
| AC Frequency | 50 Hz - 60 Hz |
| Power Consumption When Device is Off | 0.3 W |
| Power Consumption in Sleep Mode | 0.3 W |
| Average Power Consumption | 16 W |
| Maximum Power Consumption | 23 W |
| Energy Class | B |
| Accessories | |
| Extras | D-Sub cable |
| Certificates and Standards | |
| Licenses | CE EAC FCC RoHS |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 85 % |
| Internal Storage Temperature | -25 °C - 55 °C -13 °F - 131 °F |
| Internal Storage Humidity | 5 % - 93 % |
| Max Operating Altitude | 5000 |
| Max Storage Altitude | 12192 |
