| Brand | AOC |
| Type | Monitor |
| Size | 24" (inches) |
| Panel | Super MVA |
| Refresh Rate | 76 Hz |
| Min Response Time | 5 ms |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 1920 x 1080 |
| General Info | Type | Monitor |
|---|---|---|
| Year | 2015 | |
| Brand | AOC | |

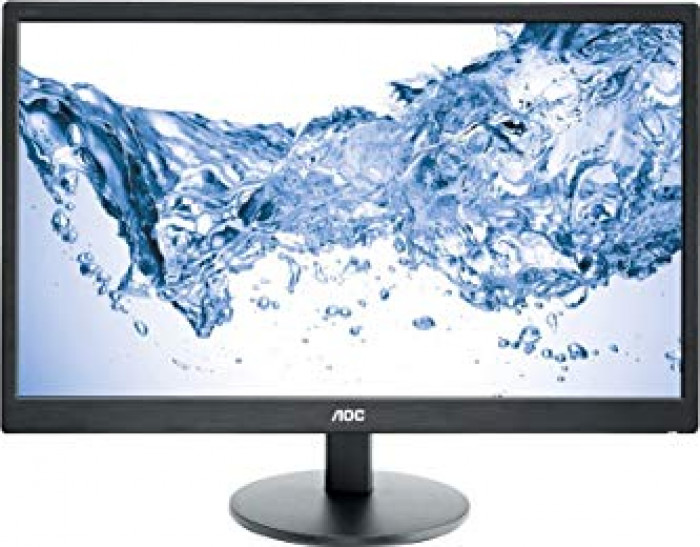

| Model Number | M2470SWDA | |
| Size | 24" (inches) | |
| Panel | Super MVA | |
| Display | Screen Size Class | 24" (inches) |
| Diagonal Size | 23.58 in 59.9 cm 599 mm 1.97 ft |
|
| Screen Width | 20.52 in 52.1 cm 521.28 mm 1.71 ft |
|
| Screen Height | 11.54 in 29.3 cm 293.22 mm 0.96 ft |
|
| Display Manufacturer | Innolux | |
| Display Type | Super MVA | |
| Display Bit Depth | 8 bits | |
| Frame Rate Control | No | |
| Max Number of Colors | 16777216 | |
| Bits | 24 | |
| Screen Aspect Ratio | 16:9 | |
| Screen Resolution | 1920 x 1080 | |
| Screen Pixel Pitch | 0.272 mm | |
| Screen Pixel Density | 93 ppi | |
| Screen-to-Body Ratio | 81.92 % | |
| Backlight Source | W-LED | |
| NTSC 1953 | 72 % | |
| Screen Brightness | 250 cd/m² | |
| Static Screen Contrast | 3000 : 1 | |
| Dynamic Screen Contrast | 30000000 : 1 | |
| Screen Horizontal Viewing Angle | 178 ° | |
| Screen Vertical Viewing Angle | 178 ° | |
| Display Minimum Response Time | 5 ms | |
| Display Coating | Anti-glare/Matte (3H) | |
| 3D | No | |
| Size, weight, color | Case Depth | 2.1 in 5.3 cm 53.4 mm 0.18 ft |
| Case Weight | 3.4 kg 7 lbs |
|
| Case Width with Stand | 21.71 in 55.1 cm 551.4 mm 1.81 ft |
|
| Case Height with Stand | 15.76 in 40 cm 400.4 mm 1.31 ft |
|
| Case Depth with Stand | 8.7 in 22.1 cm 221 mm 0.73 ft |
|
| Case Weight with Stand | 4.9 kg 11 lbs |
|
| Case Color | Black | |
| Hardware | Built-in Camera | No |
| Connectivity | 1 x 3.5 mm Audio Out 1 x DVI-D Dual Link 1 x D-sub |
|
| Audio | Audio Speakers | 2 x 2W |
| Features | Cool Features | HDCP (High-bandwidth Digital Content Protection) |
| Extra Features | Security lock slot | |
| Ergonomics | Case Width | 21.71 in 55.1 cm 551.4 mm 1.81 ft |
| Case Height | 13.32 in 33.8 cm 338.4 mm 1.11 ft |
|
| Vesa Mount Support | Yes | |
| VESA Interface Standard Size | 100 x 100 | |
| Removable VESA Stand | Yes | |
| Height Adjustment | No | |
| Landscape or Portrait Pivot Support | No | |
| Left or Right Swivel Support | No | |
| Forward and Backward Tilt Support | Yes | |
| Forward Tilt | 5 ° | |
| Backward Tilt | 25 ° | |
| Frequency and Interpolation | Vertical Digital Frequency | 50 Hz - 76 Hz |
| Horizontal Digital Frequency | 30 kHz - 83 kHz | |
| Power | 110V | 100 V - 120 V |
| 220V | 220 V - 240 V | |
| AC Frequency | 50 Hz - 60 Hz | |
| Electric Power in Amperes | 1.31 A | |
| Power Consumption When Device is Off | 0.5 W | |
| Power Consumption in Sleep Mode | 0.5 W | |
| Average Power Consumption | 28 W | |
| Power Consumption in Eco Mode | 18 W | |
| Maximum Power Consumption | 34 W | |
| Energy Class | A | |
| Accessories | Extras | Audio cable D-sub cable |
| Certificates and Standards | Licenses | CE EAC ENERGY STAR 6.0 TCO 6 |
| Usage and Storage Requirements | Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 85 % | |
| Internal Storage Temperature | -25 °C - 55 °C -13 °F - 131 °F |
|
| Internal Storage Humidity | 5 % - 93 % | |
| Max Operating Altitude | 5000 | |
| Max Storage Altitude | 12192 |
