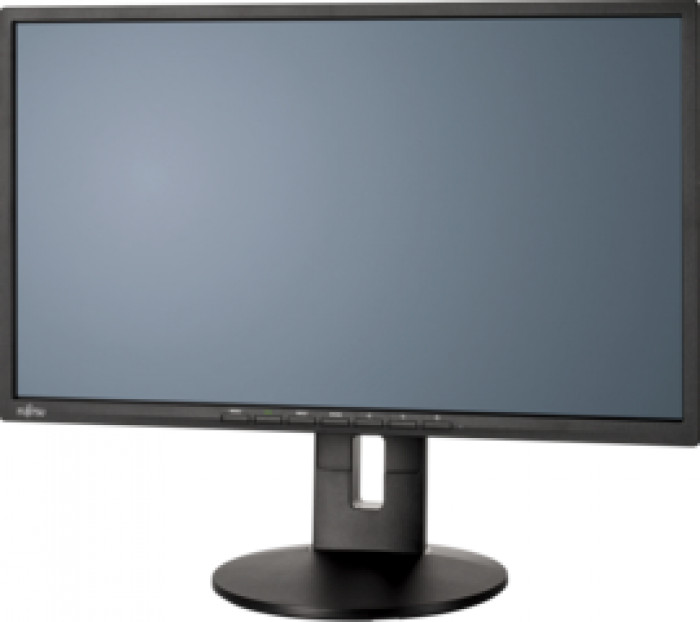

2016 22" Fujitsu B22-8 TS Pro Specifications

Brand Fujitsu
Type Monitor
Size 22" (inches)
Panel IPS
Refresh Rate 76 Hz
Min Response Time 5 ms
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
General Info
Type Monitor
Year 2016
Brand Fujitsu
Model Number B22-8 TS Pro
Size 22" (inches)
Panel IPS
Display
Screen Size Class 22" (inches)
Diagonal Size 21.5 in
54.6 cm
546.1 mm
1.79 ft
Screen Width 18.77 in
47.7 cm
476.64 mm
1.56 ft
Screen Height 10.56 in
26.8 cm
268.11 mm
0.88 ft
Display Type IPS
Display Bit Depth 8 bits (6 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 16777216
Bits 24
Screen Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Pixel Pitch 0.248 mm
Screen Pixel Density 102 ppi
Screen-to-Body Ratio 85.6 %
Backlight Source W-LED
Screen Brightness 250 cd/m²
Static Screen Contrast 1000 : 1
Dynamic Screen Contrast 20000000 : 1
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
Display Minimum Response Time 5 ms
Display Coating Anti-glare/Matte (3H)
3D No
Size, weight, color
Case Depth 2.19 in
5.6 cm
55.75 mm
0.18 ft
Case Weight 2.7 kg
6 lbs
Case Width with Stand 19.7 in
50.1 cm
500.5 mm
1.64 ft
Case Height with Stand 12.7 in
32.3 cm
322.55 mm
1.06 ft
Case Depth with Stand 8.37 in
21.3 cm
212.7 mm
0.7 ft
Case Weight with Stand 4.63 kg
10 lbs
Case Color Black
Hardware
Built-in Camera No
Connectivity 1 x DisplayPort 1.2
1 x DVI-D Dual Link
1 x 3.5 mm Audio Out
1 x 3.5 mm Audio In
2 x USB 2.0 (downstream)
1 x USB 2.0 (upstream)
Audio
Audio Speakers 2 x 1.5W
Features
Cool Features HDCP (High-bandwidth Digital Content Protection)
Low Blue Light
DDC/CI
Flicker-free technology
Extra Features Anti-theft stand lock slot - Kensington
Ergonomics
Case Width 19.7 in
50.1 cm
500.5 mm
1.64 ft
Case Height 11.74 in
29.8 cm
298.28 mm
0.98 ft
Vesa Mount Support Yes
VESA Interface Standard Size 100 x 100
Removable VESA Stand Yes
Height Adjustment Yes
Height Adjustment Range 150 mm
15 cm
5.9055 in
0.4921 ft
Landscape or Portrait Pivot Support Yes
Left Pivot 90 °
Right Pivot 90 °
Left or Right Swivel Support Yes
Left Swivel 170 °
Right Swivel 170 °
Forward and Backward Tilt Support Yes
Forward Tilt 5 °
Backward Tilt 35 °
Frequency and Interpolation
Vertical Digital Frequency 56 Hz - 76 Hz
Horizontal Digital Frequency 30 kHz - 82 kHz
Power
110V 100 V - 120 V
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.12 W
Power Consumption in Sleep Mode 0.16 W
Average Power Consumption 14.6 W
Maximum Power Consumption 20 W
Energy Class A
Accessories
Extras Audio cable
DisplayPort cable
DVI-D cable
USB 2.0 upstream cable
Certificates and Standards
Licenses C-Tick
CCC
CECP
CEL
cUL
ENERGY STAR 7.0
Epeat Gold
ErP
FCC Class B
KC
RoHS Compliant
TCO Certified Displays 6.0
TÜV/Ergonomics
TÜV/GS
VCCI
Usage and Storage Requirements
Safe Operating Temperature Level 5 °C - 35 °C
41 °F - 95 °F
Safe Operating Humidity Level 10 % - 85 %
