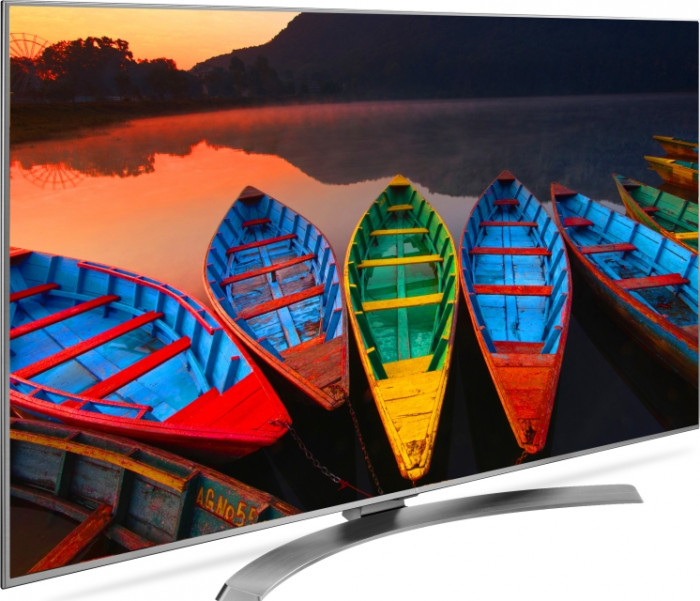

| Brand | LG |
| Type | TV |
| Size | 55" (inches) |
| Panel | IPS |
| Refresh Rate | 120 Hz |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 3840 x 2160 |
| General Info | |
|---|---|
| Type | TV |
| Year | 2016 |
| Brand | LG |
| Model Series | UH770 |
| Model Number | 55UH7700 |
| Alias | 55UH7700-UB |
| Size | 55" (inches) |
| Panel | IPS |
| Operating System | webOS 3.0 |
| Display | |
| Screen Size Class | 55" (inches) |
| Diagonal Size | 54.65 in 138.8 cm 1388 mm 4.55 ft |
| Screen Width | 47.63 in 121 cm 1209.75 mm 3.97 ft |
| Screen Height | 26.79 in 68 cm 680.483 mm 2.23 ft |
| Display Manufacturer | LG Display |
| Display Type | IPS |
| Display Bit Depth | 10 bits (8 bits + FRC) |
| Frame Rate Control | Yes |
| Max Number of Colors | 1073741824 |
| Bits | 30 |
| Screen Aspect Ratio | 16:9 |
| Screen Resolution | 3840 x 2160 |
| Screen Pixel Pitch | 0.315 mm |
| Screen Pixel Density | 81 ppi |
| Screen-to-Body Ratio | 92.67 % |
| Backlight Source | Edge LED |
| DCI P3 | 84% |
| Rec.2020 | 63 |
| Screen Brightness | 400 cd/m² |
| Max Screen Brightness | 450 cd/m² |
| Static Screen Contrast | 1400 : 1 |
| Screen Horizontal Viewing Angle | 178 ° |
| Screen Vertical Viewing Angle | 178 ° |
| Screen Input Lag | 34 ms |
| Display Average Response Time | 16 ms |
| HDR | Dolby Vision VS10 HDR Super HLG (Hybrid Log Gamma) |
| 3D | No |
| Size, weight, color | |
| Case Depth | 2.12 in 5.4 cm 53.8 mm 0.18 ft |
| Case Weight | 16.8 kg 37 lbs |
| Case Width with Stand | 48.78 in 123.9 cm 1239 mm 4.06 ft |
| Case Height with Stand | 30.39 in 77.2 cm 772 mm 2.53 ft |
| Case Depth with Stand | 11.1 in 28.2 cm 282 mm 0.93 ft |
| Case Weight with Stand | 18.5 kg 41 lbs |
| Case Color | Silver |
| Hardware | |
| System on Chip or SoC | RealTek RTD2999 |
| CPU | ARM Cortex-A53 |
| CPU Cores | 4 |
| TV Tuner | Analog (NTSC/PAL/SECAM) ATSC Clear QAM |
| Built-in Camera | No |
| Network | LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) Bluetooth Wi-Fi Direct DLNA |
| Connectivity | 1 x Ethernet RJ45 3 x HDMI 2.0 (ARC; CEC) 1 x AV Composite In 3.5 mm jack 1 x Optical Audio Out 1 x Video Component In 3.5 mm jack 1 x Satellite In (Main; F-type female) 2 x USB 2.0 1 x RS232 (C) 1 x USB 3.0 |
| Audio | |
| Audio Speakers | 2 x 10W |
| Features | |
| OS | webOS 3.0 |
| Cool Features | HDCP (High-bandwidth Digital Content Protection) 2.2 Local Dimming ULTRA Luminance SIMPLINK (HDMI CEC) True Black Panel Voice command Super Mastering Engine PVR 4K Upscaler True Color Accuracy Clear Voice III Quantum Display |
| Ergonomics | |
| Case Width | 48.78 in 123.9 cm 1239 mm 4.06 ft |
| Case Height | 28.23 in 71.7 cm 717 mm 2.35 ft |
| Vesa Mount Support | Yes |
| VESA Interface Standard Size | 300 x 300 |
| Removable VESA Stand | Yes |
| Height Adjustment | No |
| Landscape or Portrait Pivot Support | No |
| Left or Right Swivel Support | No |
| Forward and Backward Tilt Support | No |
| Frequency and Interpolation | |
| Vertical Digital Frequency | 120 Hz |
| Screen Interpolation Technology | TruMotion |
| Screen Interpolation Value | 240 |
| Screen Interpolation Measurement Unit | PPI |
| Power | |
| 110V | 100 V - 120 V |
| AC Frequency | 50 Hz - 60 Hz |
| Electric Power in Amperes | 1.7 A |
| Power Consumption When Device is Off | 0.5 W |
| Power Consumption in Sleep Mode | 0.5 W |
| Average Power Consumption | 120 W |
| Power Consumption in Eco Mode | 60 W |
| Maximum Power Consumption | 170 W |
| Accessories | |
| Extras | 3.5 mm component adapter 3.5 mm composite adapter Remote control - MR15R |
| Certificates and Standards | |
| Licenses | ENERGY STAR RoHS UL/cUL |
| Usage and Storage Requirements | |
| Safe Operating Temperature Level | 0 °C - 40 °C 32 °F - 104 °F |
| Safe Operating Humidity Level | 10 % - 80 % |
| Internal Storage Temperature | -20 °C - 60 °C -4 °F - 140 °F |
| Internal Storage Humidity | 5 % - 85 % |
