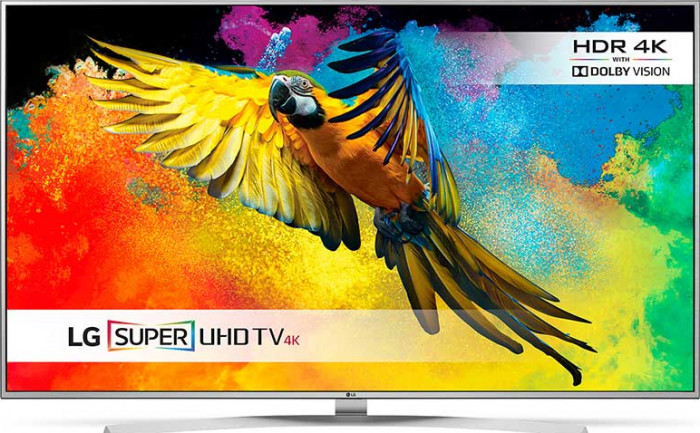

2016 55" LG 55UH770V Specifications

Brand	LG
Type	TV
Size	55" (inches)
Panel	IPS
Refresh Rate	120 Hz
Screen Aspect Ratio	16:9
Screen Resolution	3840 x 2160

Check on Amazon

Compare

General Info
Type	TV
Year	2016
Brand	LG
Model Series	UH770
Model Number	55UH770V
Alias	55UH7707
Size	55" (inches)
Panel	IPS
Operating System	webOS 3.0
Display
Screen Size Class	55" (inches)
Diagonal Size	54.65 in 138.8 cm 1388 mm 4.55 ft
Screen Width	47.63 in 121 cm 1209.75 mm 3.97 ft
Screen Height	26.79 in 68 cm 680.483 mm 2.23 ft
Display Manufacturer	LG Display
Display Type	IPS
Display Bit Depth	10 bits (8 bits + FRC)
Frame Rate Control	Yes
Max Number of Colors	1073741824
Bits	30
Screen Aspect Ratio	16:9
Screen Resolution	3840 x 2160
Screen Pixel Pitch	0.315 mm
Screen Pixel Density	81 ppi
Screen-to-Body Ratio	92.67 %
Backlight Source	Edge LED
DCI P3	84%
Rec.2020	63
Screen Brightness	400 cd/m²
Max Screen Brightness	450 cd/m²
Static Screen Contrast	1400 : 1
Screen Horizontal Viewing Angle	178 °
Screen Vertical Viewing Angle	178 °
Screen Input Lag	38 ms
Display Average Response Time	16 ms
HDR	Dolby Vision VS10 HDR Super HLG (Hybrid Log Gamma)
3D	No
Size, weight, color
Case Depth	2.12 in 5.4 cm 53.8 mm 0.18 ft
Case Weight	16.8 kg 37 lbs
Case Width with Stand	48.78 in 123.9 cm 1239 mm 4.06 ft
Case Height with Stand	30.39 in 77.2 cm 772 mm 2.53 ft
Case Depth with Stand	11.1 in 28.2 cm 282 mm 0.93 ft
Case Weight with Stand	18.5 kg 41 lbs
Case Color	Silver
Hardware
System on Chip or SoC	RealTek RTD2999
CPU	ARM Cortex-A53
CPU Cores	4
TV Tuner	Analog (NTSC/PAL/SECAM) DVB-T DVB-S DVB-S2 DVB-T2 DVB-C
Built-in Camera	No
Network	LAN Wi-Fi 802.11a (IEEE 802.11a-1999) 802.11b (IEEE 802.11b-1999) 802.11g (IEEE 802.11g-2003) 802.11n (IEEE 802.11n-2009) 802.11n 5GHz 802.11ac (IEEE 802.11ac) Bluetooth Wi-Fi Direct DLNA
Connectivity	1 x Ethernet RJ45 3 x HDMI 2.0 (ARC; CEC; MHL) 1 x CI+ 1.3 1 x AV Composite In 3.5 mm jack 1 x Optical Audio Out 1 x Video Component In 3.5 mm jack 1 x Satellite In (Main; F-type female) 2 x USB 2.0 1 x RS232 (C) 1 x USB 3.0 1 x Antenna (RF) (female)
Audio
Audio Speakers	2 x 10W
Features
OS	webOS 3.0
Cool Features	Active Noise Reduction Clear Voice III Quantum Display Dynamic Color Enhancer Local Dimming Voice command UHD Master Engine HDCP (High-bandwidth Digital Content Protection) 2.2 ColourPrime Pro 3D Colour Mapping ULTRA Luminance PVR 4K Upscaler SIMPLINK (HDMI CEC)
Ergonomics
Case Width	48.78 in 123.9 cm 1239 mm 4.06 ft
Case Height	28.23 in 71.7 cm 717 mm 2.35 ft
Vesa Mount Support	Yes
VESA Interface Standard Size	300 x 300
Removable VESA Stand	Yes
Height Adjustment	No
Landscape or Portrait Pivot Support	No
Left or Right Swivel Support	No
Forward and Backward Tilt Support	No
Frequency and Interpolation
Vertical Digital Frequency	120 Hz
Screen Interpolation Technology	Picture Mastering Index
Screen Interpolation Value	2500
Screen Interpolation Measurement Unit	PMI
Power
220V	220 V - 240 V
AC Frequency	50 Hz - 60 Hz
Power Consumption When Device is Off	0.5 W
Power Consumption in Sleep Mode	0.5 W
Average Power Consumption	106 W
Power Consumption in Eco Mode	85 W
Maximum Power Consumption	125 W
Energy Class	A+
Accessories
Extras	3.5 mm component adapter 3.5 mm composite adapter Remote control - MR15R
Certificates and Standards
Licenses	RoHS UL/cUL
Usage and Storage Requirements
Safe Operating Temperature Level	0 °C - 40 °C 32 °F - 104 °F
Safe Operating Humidity Level	10 % - 80 %
Internal Storage Temperature	-20 °C - 60 °C -4 °F - 140 °F
Internal Storage Humidity	5 % - 85 %
