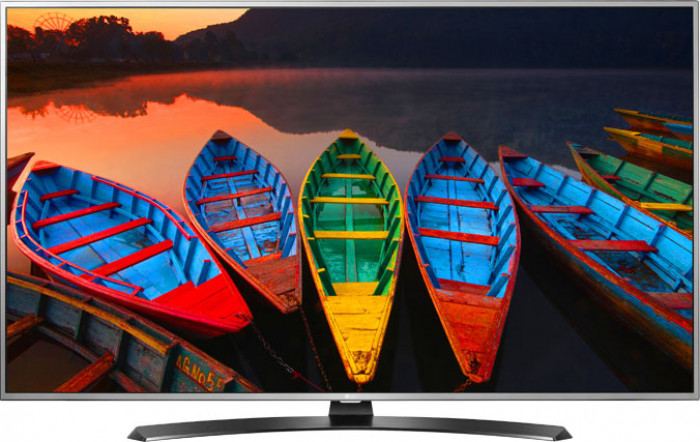

2016 60" LG 60UH7650 Specifications

Brand LG
Type TV
Size 60" (inches)
Panel IPS
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2016
Brand LG
Model Series UH765
Model Number 60UH7650
Alias 60UH7650-UA
Size 60" (inches)
Panel IPS
Operating System webOS 3.0
Display
Screen Size Class 60" (inches)
Diagonal Size 59.49 in
151.1 cm
1511 mm
4.96 ft
Screen Width 51.85 in
131.7 cm
1316.95 mm
4.32 ft
Screen Height 29.16 in
74.1 cm
740.785 mm
2.43 ft
Display Manufacturer LG Display
Display Type IPS
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.343 mm
Screen Pixel Density 74 ppi
Screen-to-Body Ratio 92.41 %
Backlight Source Edge LED
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
HDR Dolby Vision VS10
HDR Super
3D No
Size, weight, color
Case Depth 2.44 in
6.2 cm
62 mm
0.2 ft
Case Weight 22.5 kg
50 lbs
Case Width with Stand 53.15 in
135 cm
1350 mm
4.43 ft
Case Height with Stand 33.03 in
83.9 cm
839 mm
2.75 ft
Case Depth with Stand 10.98 in
27.9 cm
279 mm
0.92 ft
Case Weight with Stand 24.7 kg
54 lbs
Case Color Silver
Hardware
System on Chip or SoC K2L
CPU Cores 4
TV Tuner Analog (NTSC/PAL/SECAM)
ATSC
Clear QAM
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Bluetooth
Wi-Fi Direct
DLNA
Connectivity 1 x Ethernet RJ45
3 x HDMI 2.0 (ARC; CEC)
1 x AV Composite In 3.5 mm jack
1 x Optical Audio Out
1 x Video Component In 3.5 mm jack
1 x Satellite In (Main; F-type female)
2 x USB 2.0
1 x RS232 (C)
1 x USB 3.0
Audio
Audio Speakers 2 x 10W
Features
OS webOS 3.0
Cool Features HDCP (High-bandwidth Digital Content Protection) 2.2
Local Dimming
ULTRA Luminance
SIMPLINK (HDMI CEC)
True Black Panel
Voice command
Super Mastering Engine
PVR
4K Upscaler
True Color Accuracy
Clear Voice III
Quantum Display
Ergonomics
Case Width 53.15 in
135 cm
1350 mm
4.43 ft
Case Height 30.79 in
78.2 cm
782 mm
2.57 ft
Vesa Mount Support Yes
VESA Interface Standard Size 300 x 300
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology TruMotion
Screen Interpolation Value 120
Screen Interpolation Measurement Unit PPI
Power
110V 100 V - 120 V
AC Frequency 50 Hz - 60 Hz
Electric Power in Amperes 1.6 A
Power Consumption When Device is Off 0.5 W
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 160 W
Accessories
Extras 3.5 mm component adapter
3.5 mm composite adapter
Remote control - MR15R
Certificates and Standards
Licenses ENERGY STAR
RoHS
UL/cUL
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 10 % - 80 %
Internal Storage Temperature -20 °C - 60 °C
-4 °F - 140 °F
Internal Storage Humidity 5 % - 85 %
