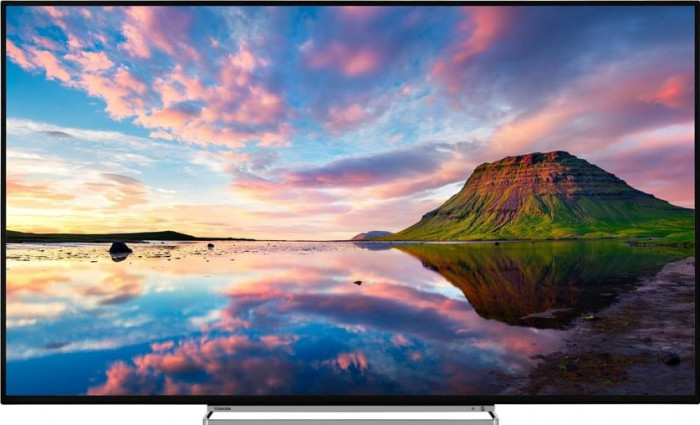

2018 55" Toshiba 55U6863 Specifications

Brand Toshiba
Type TV
Size 55" (inches)
Refresh Rate 60 Hz
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
General Info
Type TV
Year 2018
Brand Toshiba
Model Series U68
Model Number 55U6863
Alias 55U6863DG
Size 55" (inches)
Operating System Smart TV
Display
Screen Size Class 55" (inches)
Diagonal Size 54.65 in
138.8 cm
1388 mm
4.55 ft
Screen Width 47.62 in
121 cm
1209.6 mm
3.97 ft
Screen Height 26.79 in
68 cm
680.4 mm
2.23 ft
Display Bit Depth 10 bits (8 bits + FRC)
Frame Rate Control Yes
Max Number of Colors 1073741824
Bits 30
Screen Aspect Ratio 16:9
Screen Resolution 3840 x 2160
Screen Pixel Pitch 0.315 mm
Screen Pixel Density 80 ppi
Screen-to-Body Ratio 91.07 %
Backlight Source Direct LED
Screen Brightness 350 cd/m²
Screen Horizontal Viewing Angle 178 °
Screen Vertical Viewing Angle 178 °
HDR HDR10
HLG (Hybrid Log Gamma)
Dolby Vision
3D No
Size, weight, color
Case Depth 3.58 in
9.1 cm
91 mm
0.3 ft
Case Width with Stand 48.74 in
123.8 cm
1238 mm
4.06 ft
Case Height with Stand 29.33 in
74.5 cm
745 mm
2.44 ft
Case Depth with Stand 10.04 in
25.5 cm
255 mm
0.84 ft
Case Weight with Stand 19 kg
42 lbs
Case Color Black, Silver
Hardware
CPU Cores 2
TV Tuner Analog (NTSC/PAL/SECAM)
DVB-T
DVB-T2
DVB-C
DVB-S
DVB-S2
Built-in Camera No
Network LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
Bluetooth
Wi-Fi Direct
Connectivity 3 x HDMI 2.0 (ARC; CEC)
1 x D-sub
1 x AV Composite In (Video + L/R)
1 x 3.5 mm Audio Out
1 x Optical Audio Out
1 x Satellite In (Main; F-type female)
2 x USB 2.0
1 x Antenna (RF) (female)
1 x Ethernet RJ45
1 x CI+ 1.3
Audio
Audio Speakers 2 x 10W
Features
OS Smart TV
Cool Features UHD Resolution Enhancer
UHD Upscaler
HDCP (High-bandwidth Digital Content Protection) 2.2
PVR
Ergonomics
Case Width 48.74 in
123.8 cm
1238 mm
4.06 ft
Case Height 28.74 in
73 cm
730 mm
2.4 ft
Vesa Mount Support Yes
VESA Interface Standard Size 400 x 200
Removable VESA Stand Yes
Height Adjustment No
Landscape or Portrait Pivot Support No
Left or Right Swivel Support No
Forward and Backward Tilt Support No
Frequency and Interpolation
Vertical Digital Frequency 60 Hz
Screen Interpolation Technology Total Picture Quality
Screen Interpolation Value 1700
Screen Interpolation Measurement Unit TPQ
Power
220V 220 V - 240 V
AC Frequency 50 Hz - 60 Hz
Power Consumption When Device is Off 0.5 W
Power Consumption in Sleep Mode 0.5 W
Average Power Consumption 86 W
Energy Class A+
Accessories
Certificates and Standards
Licenses RoHS
Usage and Storage Requirements
Safe Operating Temperature Level 0 °C - 40 °C
32 °F - 104 °F
Safe Operating Humidity Level 0 % - 85 %
